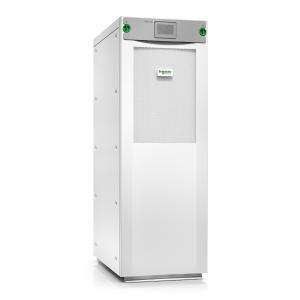

APC GALAXY VS Uninterruptible Power Supply UPS - 480-576VDC External battery system Li-Ion (Lithium Ion) VRLA, 400 V 3 phase, Schneider Electric, 0...3300 ft
Express Shipping
out of 5 stars
Key Features
Reliable Backup Power – Ensures uninterrupted 400 V 3-phase power for critical systems, protecting offices, data centers, and industrial applications against outages.
-
Advanced Battery System – Features external Li-Ion and VRLA batteries with scalable runtime, providing flexible and long-lasting power backup.
-
Comprehensive Protection – Equipped with surge protection, power conditioning, and voltage regulation to safeguard sensitive electronic equipment.
-
Smart Power Management – Includes networked power monitoring, remote management capabilities, and energy-efficient operation for optimal performance.
-
Wide Operating Altitude – Designed to function effectively from 0 to 3300 ft, ensuring stable performance across various installation environments.
Package Dimensions
Specifications
Q&A
Warranty
wholesale buying guide
General
- Battery Voltage
- 480-576VDC
- Maximum Configurable Power in VA
- 150 kVA
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery Type
- External battery system Li-Ion (Lithium Ion) VRLA
- Main Input Voltage
- 400 V 3 phase
- Main Output Voltage
- 400 V 3 phase
- Battery power in VAH
- 0 VAh runtime
- Color
- White
Tech Specs
- Presentation
- Highly efficient, fast-to-deploy 150kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.
- Lead time
- Usually Ships within 2 Weeks
- Main Input Voltage
- 380 V 415 V
- Provided Equipment
- Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Weight
- 290 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency at full load
- 340...460 V 400 V
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Transfer Time
- +/-1% after 50ms
- Output Voltage THD
- < 1% linear load and < 5% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- EN/IEC 62040-1 EN/IEC 62040-2 FCC Part 15 class A IEC 60721-4-2 Level 2M2 UL 1778 5th edition
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Acoustic level
- 68 dBA
- Heat dissipation
- 16900 Btu/h
- IP degree of protection
- IP21
- Control panel
- Touch Screen LCD User Interface
