CISCO Catalyst C1000 Switch - 20 Gbps Switching capacity, Throughput up to 14.88 Mpps, 120W PoE Capability, 8 x RJ45, 2 x SFP uplink
Key Features
- Compact Switching Capacity: Offers 20 Gbps switching capacity and throughput up to 14.88 Mpps, ideal for small office or branch network environments.
- PoE+ Support: Provides 120W of PoE+ power across 8 x Gigabit Ethernet PoE+ ports, enabling seamless connectivity for powered devices like IP cameras and phones.
- Uplink Flexibility: Equipped with 2 x combo Gigabit SFP uplink ports, offering additional connectivity options to expand your network.
- Efficient Performance: Features 512MB of RAM and 256MB of storage to support basic network functions and configurations with reliable performance.
- Simple Management: Cisco Catalyst C1000 offers easy-to-manage features, making it suitable for businesses seeking a cost-effective, reliable networking solution.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Storage size
- 256 MB
- Switching Capacity
- 20 Gbps
- Ports
- 8 x Gigabit Ethernet (PoE+) + 2 x combo Gigabit SFP (uplink)
- Throughput rate
- 14.88 Mpps
- Layer Services Supported
- Layer 2
- Size of RAM
- 512 MB
Tech Specs
- MTBF
- 1706649
- Weight
- 2.7 Kg
- MAC Address Table
- 16 K
- Operating Temperature
- -5 °C to 50 °C
- Dimensions
- L (12.72 in) | W (10.55 in) | H (1.73 in)
Powering
- PoE Capability
- 120 Watts
| Products |
|---|
| Choose your plan |
- ARM Cortex A72 (Quad-Core Up to 1.8 GHz)
- 176 Gbps
- 48 x Gigabit Ethernet BASE-T Ports | 4 x 1/10G SFP Ports | 1 x USB-C Console | 1 x OOBM | 1 x USB-A | 1 x Bluetooth Adapter
- Layer 2
- 24 x Gigabit Ethernet Ports | 4 x SFP+ | 1 x RJ-45 console | 1 x USB Type C management
- 1 GB
- 10 Gbps
- Yes
- Desktop | Wall Mountable | Rack-mountable
- 130.95 Mpps
- 8GB
- Layer 2, Layer 3
- 176 Gb/s
- Single-Core: Up to 800 MHz Cortex A9
- 256 MB
- 26.78 Mpps
- Layer 2
- 36 Gbps
Brand New
HPE Aruba CX 6200F (JL726A) Switch - 48 x Gigabit Ethernet BASE-T Ports, 4 x 1/10G SFP Ports, 1 x USB-C Console, 1 x OOBM, 1 x USB-A
(0.0)
Brand New

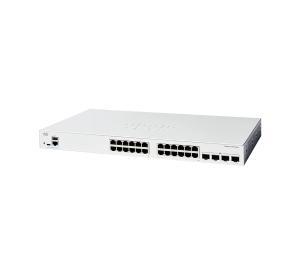

CISCO Catalyst C1300 Managed Switch - 128 Gbps Switching Capacity, Throughput up to 95.23 Mbps, 24 x RJ45, 4 x SFP+
