CISCO Catalyst C9200L Switch - 176 Gbps Switching Capacity, Throughput up to 261.9 Mpps, 48 x RJ45, 4 x uplinks, with Network Essentials
Key Features
- High-Speed Performance: Achieves 176 Gbps switching capacity with a throughput of up to 261.9 Mpps for rapid, reliable data transmission.
- Extensive Port Connectivity: Features 48 Gigabit Ethernet ports and 4 x 10G fixed uplinks, providing versatile and high-speed network connections.
- Advanced Layer Support & Scalability: Supports both Layer 2 and Layer 3 services with 80 Gbps stacking bandwidth and up to 1024 VLAN IDs for robust network segmentation.
- Optimized Memory & Management: Equipped with 2GB RAM, 4GB storage, a 16K MAC address table, and 1,000 QoS scale entries for efficient network control.
- Enterprise-Grade Reliability: Backed by Cisco Network Essentials with 125W AC power, comprehensive ACL (1,500 scale entries), and extensive routing support (3,000 IPv4 and 1,500 IPv6 entries) in a compact 4.52 kg design.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Storage size
- 4GB
- Switching Capacity
- 176 Gbps
- Ports
- 48 x Gigabit Ethernet Ports | 4 x 10G fixed uplinks
- Throughput rate
- 261.9 Mpps
- Layer Services Supported
- Layer 2, Layer 3
- Size of RAM
- 2GB
Tech Specs
- IPv6 routing entries
- 1,500
- IPv4 routing entries
- 3,000
- Stacking Bandwidth
- 80Gbps
- QoS scale entries
- 1,000
- ACL scale entries
- 1,500
- VLAN IDs
- 1024
- Weight
- 4.52 kg
- MAC Address Table
- 16 K
Powering
- Power Supply
- 125W AC
| Products |
|---|
| Choose your plan |
- CE, EAC, ROHS
- 98DX3236
- RouterOS / SwitchOS
- 6 Gbit/s
- Yes
- Desktop | Wall Mountable | Rack-mountable
- 1/1.8" Progressive Scan CMOS
- 4MP (2688 × 1520)
- Varifocal Lens, motorized lens, 2.8 to 12 mm
- 8 x Gigabit Ethernet PoE+ Ports RJ45 (30 W, 802.3at) | 2 x SFP Gigabit Ethernet Ports
- 20 Gb/s
- 256 MB
- Layer 2
- 24 x Gigabit Ethernet Ports | 4 x Gigabit SFP (uplink)
- 128 Gbps
- 24 x Gigabit Ethernet ports RJ-45 | Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T) | 4 x SFP+ 1/10GbE ports
- 32°F to 104°F (0°C to 40°C)
- 128 Gb/s
- Layer 2, Layer 3
- 77.38 Mpps
- 104 Gbps
- 1.2 Mpps
- 1.6 Gbps
- 5 x Fast Ethernet Ports
Brand New
Mikrotik (CRS326-24G-2S+IN) Switch - 24 x Gigabit Ethernet ports, 2 x SFP+ ports RJ45, PoE-in
(0.0)
Brand New
Fortinet FortiGate FG-61F NGFW Manageable Firewall - 6 Gbit/s Firewall Throughput, SHA-256, AES (256-bit), 200 VPN, 10 x RJ45 Ports | FG-61F
(0.0)
Brand New
Hikvision ColorVu Motorized Varifocal Bullet Camera - 4MP (2688 × 1520), 1/1.8" Progressive Scan CMOS, 2.8 to 12 mm Lens, PoE Connect power, Water and Dust Resistant
(0.0)
Brand New
HPE Aruba Instant On 1930 (JL681A) Switch - 8 x Gigabit Ethernet PoE+ Ports RJ45 (30 W, 802.3at), 2 x SFP Gigabit Ethernet Ports
(0.0)
Brand New
CISCO Meraki MS210 Switch - 128 Gbps Switching capacity, Throughput up to 41.67 Mpps, 24 x RJ45, 4 x SFP uplink
(0.0)
Brand New
HPE Aruba Instant On 1930 (JL684A) Switch - 24 x Gigabit Ethernet ports RJ-45, Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T), 4 x SFP+ 1/10GbE ports
(0.0)
Brand New

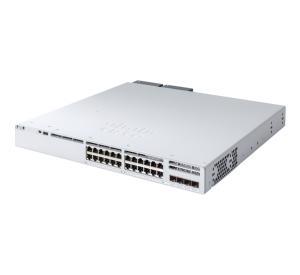

CISCO Catalyst C9300L Managed Switch - 104 Gbps Switching Capacity, Throughput up to 77.38 Mpps, 48 x RJ45, 4 x SFP uplink, Network Advantage
