HPE Aruba 2930M (JL323A) Switch - 36 x Gigabit Ethernet PoE+ Ports RJ45, 4 x RJ45/SFP Combo Gigabit Ethernet PoE+, 8 x RJ45 Smart Rate (1/2/5/10 GbE) PoE+ Ports, 1 x RJ-45 Console, 1 x Micro-USB, 1 x USB A, 1 x OOBM
Key Features
Versatile Port Configuration: The switch features 36 x Gigabit Ethernet PoE+ Ports RJ45 and 4 x RJ45/SFP Combo Gigabit Ethernet PoE+ Ports, providing flexible connectivity options for various devices and enabling seamless integration into existing networks.
High-Speed Smart Rate Ports: With 8 x RJ45 Smart Rate (1/2/5/10 GbE) PoE+ Ports, this switch supports multi-gigabit speeds, allowing for increased bandwidth to high-demand applications such as video conferencing and data-heavy operations.
Advanced Management Features: The inclusion of a 1 x OOBM (Out-of-Band Management) port ensures reliable management and monitoring capabilities, allowing administrators to configure the switch even when the main network is down.
Comprehensive Connectivity Options: Equipped with 1 x RJ-45 Console, 1 x Micro-USB, and 1 x USB-A ports, this switch facilitates easy setup and management, offering multiple ways to connect and configure devices.
Enhanced Power Delivery: Supporting PoE+ technology, the HPE Aruba 2930M ensures efficient power delivery to devices while simplifying installation, making it an ideal choice for powering access points, IP phones, and other PoE-capable devices across the network.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Switching Bandwidth
- 320 Gb/s
- CPU
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- Storage size
- 4GB eMMC
- Ports
- 36 x Gigabit Ethernet PoE+ Ports RJ45, 4 x RJ45/SFP Combo Gigabit Ethernet PoE+, 8 x RJ45 Smart Rate (1/2/5/10 GbE) PoE+ Ports, 1 x RJ-45 Console, 1 x Micro-USB, 1 x USB A, 1 x OOBM
- Size of RAM
- 1GB DDR3
Tech Specs
- Cooling System
- Fan
- Latency
- 1000 Mb Latency < 3.1 µs | 10 Gbps Latency < 3.4 µs
- Max power consumption
- L086A (PSU (each) 495W) | JL087A (PSU (each) 855W)
- Weight
- 4.45 kg
Powering
- Power Supply
- JL086A (X372 54VDC 680W 100-240VAC) | JL087A (X372 54VDC 1050W 110-240VAC)
PoE-out
- PoE Capability
- Up to 1440 Watts
| Products |
|---|
| Choose your plan |
- Layer 2
- 77.38 Mpps
- 104 Gbps
- 198 Gbit/s
- Yes
- Rack-mountable | Rail-mountable
- 10 Gbps
- Yes
- Desktop | Wall Mountable | Rack-mountable
- Layer 2, Layer 3
- 190.48 Mpps
- 256 Gbps
- Layer 2
- 127.98 Mpps
- 176 Gbps
- CE, FCC, IC
- 26 Gb/s (Non-Blocking)
- 24 x Gigabit Ethernet RJ45 | 2 x SFP Gigabit Ethernet Ports
CISCO Catalyst C1200 Managed Switch - 104 Gbps Switching Capacity, Throughput up to 77.38 Mpps, 48 x RJ45, 4 x SFP
Fortinet FortiGate FG-2600F NGFW Manageable Firewall - 198 Gbit/s Firewall Throughput, SHA-256, AES (256-bit), 30000 VPN, 16 x RJ45 Ports, 22 x Expansion Slots | FG-2600F-BDL-950-12

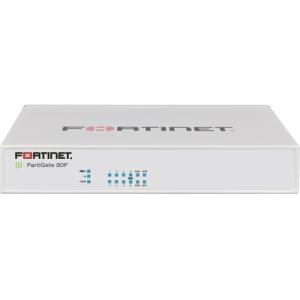

Fortinet FortiGate 80F NGFW Manageable Firewall - 10 Gbps Firewall Throughput, AES (256-bit), SHA-256, 200 VPN, 10 x RJ45 Ports, 2 x Expansion Slots
