HPE Aruba 3810M (JL074A) Switch - 48 x Gigabit Ethernet PoE+ Ports, 1 - 48 support MACsec
Key Features
Comprehensive PoE+ Support: Features 48 Gigabit Ethernet PoE+ ports, allowing for seamless power delivery to connected devices such as IP phones and wireless access points.
Enhanced Security with MACsec: Offers support for MACsec on ports 1-48, ensuring secure data transmission across the network and protecting sensitive information.
High Switching Capacity: Provides a robust 320 Gbps switching bandwidth, enabling efficient handling of data traffic and minimizing network congestion.
Flexible Deployment Options: Ideal for enterprise environments, the switch can easily be integrated into existing infrastructures to enhance network capabilities.
Reliable Performance: Built for durability and reliability, this switch is designed to meet the demands of high-performance networking applications in both wired and wireless environments.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Switching Bandwidth
- 320 Gbps
- CPU
- ARM Cortex-A9 (Dual-Core, 1GHz)
- Ports
- 48 x Gigabit Ethernet PoE+ Ports | 1 - 48 support MACsec | 4 x SFP+ ports or 2 40GbE ports, with optional module
- Size of RAM
- 2 GB DDR3
Tech Specs
- Latency
- 1000 Mb Latency < 2.8 µs | 10 Gbps Latency < 1.8 µs | 40 Gbps Latency: < 1.5 µs
- Maximum Throughput
- up to 190.5 Mpps
- Stacking capabilities
- Virtual 10 switches
- Weight
- 6.18 kg
Powering
- Input voltage
- 100-240 VAC
PoE-out
- PoE Capability
- 1,440 Watts
| Products |
|---|
| Choose your plan |
- Layer 2, Layer 3
- 41.66 Mpps
- 56 Gbps
- 10 Gbps
- Yes
- Desktop | Wall Mountable
- 1 Gbps
- 0°C to 40°C (32°F to 104°F)
- CE, ROHS
- 4 GB
- 24 x Gigabit Ethernet PoE+ Ports | 4 x 10 Gigabit SFP+ (uplink)
- 128 Gbps
- 64 MB
- SwitchOS Lite
- -40°C to 70°C
- 24 Gbps
- Layer 2+
- 8 × Gigabit PoE++ Mbps Ports | 4 x SFP+ Ports
- 56 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 1GB DDR3
CISCO Catalyst C9200L Managed Switch - 56 Gbps Switching Capacity, Throughput up to 41.66 Mpps, 370W PoE Capability, 24 x PoE+ RJ45, 4 x SFP uplink
Fortinet FortiGate FG-60F NGFW Manageable Firewall - 10 Gbps Firewall Throughput, AES (256-bit), SHA-256, 200 VPN, 10 x RJ45 Ports | FG-60F-BDL-950-12
Ruijie (RG-ES105D) Desktop Unmanaged Switch - 5 x 10/100 Base-TX Ports

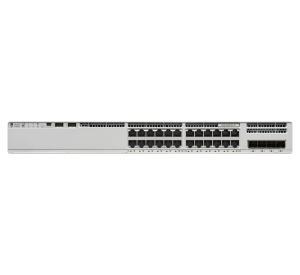

Cisco Switch Catalyst 9200 Switch - 128 Gbps Switching Bandwidth, 190.4 Mpps Throughput, 24 x PoE+ RJ45 Ports, 4 x SFP+ (uplink)
MikroTik (CSS610-8P-2S+IN) Switch - 8 x Gigabit Ethernet ports, 8 x 1G Ethernet ports with PoE-out, 2 x SFP+ ports, PoE-in

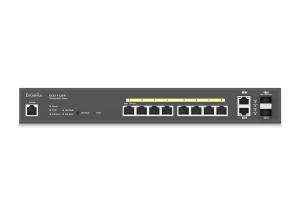

EnGenius ECS1112FP Cloud Managed Switch - 24 Gbps switching Capacity, Throughput up to 14.88 Mpps, 130W PoE Capability, 8 x RJ45, 2 Dual-Speed SFP
