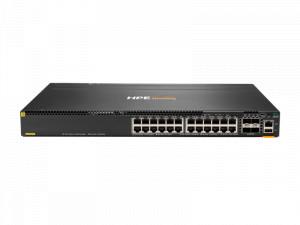

HPE Aruba CX 6300M (JL662A) Switch - 24 x Gigabit Ethernet BaseT PoE+ Ports, 4 x 1G/10G/25G/50G* SFP Ports, 1 x USB‑C Console, 1 x OOBM, 1 x USB-A
Key Features
High-Performance Connectivity: Equipped with 24 Gigabit Ethernet BaseT PoE+ Ports and 4 versatile 1G/10G/25G/50G SFP ports for flexible, high-speed networking needs.
Exceptional Switching Capacity: With 448 Gbps switching bandwidth and a max throughput of 334 Mpps, this switch supports high data flow for demanding applications.
Stacking Capabilities: Stack up to 10 switches to streamline management, expand network reach, and enhance performance across larger enterprise environments.
PoE+ Support: Provides Power over Ethernet (PoE+) on all ports, allowing easy connection and powering of PoE-compatible devices such as access points and IP phones.
Flexible Management: Features USB-C console, USB-A, and Out-of-Band Management (OOBM) for multiple options in configuration and network troubleshooting.
Specifications
Q&A
Warranty
wholesale buying guide
General
- CPU
- ARM Cortex-A72 (Quad-Core 1.8GHz)
- Ports
- 24 x Gigabit Ethernet BaseT PoE+ supporting up to 30W per Ports | 4 x 1G/10G/25G/50G* SFP Ports | 1 x USB‑C Console Port | 1 x OOBM Port | 1 x USB Type A Host Port
- Switching Bandwidth
- 448 Gbps
- Storage size
- 32GB eMMC
- Size of RAM
- 8 GB DDR4
Tech Specs
- Latency
- 1Gbps 2.28μSec | 10Gbps 1.46μSec | 25Gbps: 1.90μSec | 50Gbps: 3.49μSec
- Maximum Throughput
- 334 Mpps
- Stacking capabilities
- Up to 10 switches per stack
- Weight
- 5 kg
Powering
- Input voltage
- JL670A PSU (110V‑120V/208V‑240V) | JL086A PSU (100V‑240V) | JL087A PSU (110V‑240V)
- Power Consumption
- L086A PSU (Idle - 60W, 100% Traffic Rate - 76W) | JL087A PSU ( Idle - 59W, 100% Traffic Rate 74 W) | JL670A PSU ( Idle - 62W, 100% Traffic Rate - 81 W)
