Key Features
Key features of BaseBox 6 (RB912UAG-6HPnD-OUT) include a MIPSBE architecture, AR9342 CPU, 64 MB RAM, 128 MB NAND storage, passive cooling, 1 Ethernet port, 1 SIM slot, 1 MiniPCI-e slot, 1 USB port, IP54 rating, and RouterOS operating system with a 4 license. It supports passive PoE with an input voltage of 10-30 V and has a max power consumption of 23 W. The wireless 6 GHz has a max data rate of 300 Mbit/s, 2 chains, and support for 802.11a/n standards. It has an MTBF of 100,000 hours and can operate in extreme temperatures from -40°C to 70°C. The suggested price is $89.00.
Specifications
Q&A
Warranty
wholesale buying guide
General
- RouterOS license
- 4
- Storage size
- 128 MB
- Storage type
- NAND
- Ambient temperature
- -40°C to 70°C
- Cooling type
- Passive
- Max power consumption without attachments
- 12 W
- PoE in
- Passive PoE
- Number of USB ports
- 1
- Max USB current (A)
- 1
- 54MBit/s
- 26
- 10/100/1000 Ethernet ports
- 1
- Number of DC inputs
- 1 (PoE-IN)
- IP
- IP54
- USB slot type
- USB type A
- Architecture
- MIPSBE
- Operating System
- RouterOS
- Number of SIM slots
- 1 Modem (Mini SIM)
- MiniPCI-e slots
- 1
- Wireless 6 GHz Max data rate
- 300 Mbit/s
- Wireless 6 GHz number of chains
- 2
- Wireless 6 GHz standards
- 802.11a/n
- Wireless 6 GHz chip model
- AR9342
- Wireless 6 GHz generation
- Wi-Fi 4
- MCS0
- 29
- CPU nominal frequency
- 600 MHz
- PoE in input Voltage
- 10-30 V
- 6MBit/s
- 30
- MCS7
- 23
- Max power consumption
- 23 W
- CPU
- AR9342
- vPro Support
- Yes
- CPU core count
- 1
- Certifications
- EAC
- MTBF
- Approximately 100'000 hours at 25C
- Size of RAM
- 64 MB
- Dimensions
- 246 x 135 x 50 mm
| Products |
|---|
| Choose your plan |
- 10 Gbit/s
- Yes
- Desktop | Wall Mountable | Compact | Rack-mountable
- 56 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 24 x Gigabit Ethernet BASE-T Ports RJ45, 4 x 1G SFP Ports
- 24V DC - 0.3A
- 0.3A - 120V AC | 0.2A - 240V AC Output
- <40A peak - 120V AC | <70A peak - 230V AC
- Layer 2, Layer 3
- 190.48 Mpps
- 256 Gbps
- Desktop | Wall Mountable | Rack-mountable
- 200
- SHA-256, AES (256-bit)
- FCC, IC, CE
- Fixed focal length
- 6 m (20 ft) IR
Brand New
Fortinet FortiGate FG-70F Manageable Firewall - 10 Gbit/s Firewall Throughput, SSL, TLS 1.3, SHA-256, RSA 2048-bit, AES (256-bit), 200 VPN, 10 x RJ45 Ports | FG-70F-BDL-809-36
(0.0)
Brand New

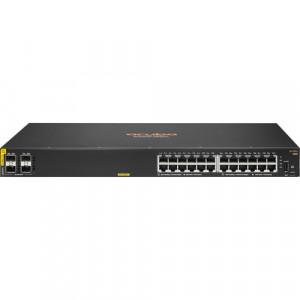

HPE Aruba CX 6000 (R8N88A) Switch - 24 x Gigabit Ethernet BASE-T Ports RJ45, 4 x 1G SFP Ports
