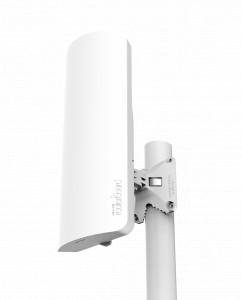

Mikrotik mANT 15s MTAS-5G-15D120 - Dual-polarization ANTENNA
$ 70.80
MPN #MTAS-5G-15D120
Key Features
The mANT 15s (MTAS-5G-15D120) features a 120 degree azimuth and 10 degree elevation beamwidth, with CE and ROHS certifications. With two RP-SMA connectors, the cross polarization is greater than 30 dB and the front-to-back ratio is greater than 30 dB. It has a diameter of 140 x 348 x 82 mm and a frequency range of 5.17 - 5.825 GHz. The antenna has vertical and horizontal polarization and a port-to-port isolation of greater than 40 dB minimum. It weighs 734 g.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Beamwidth
- 120 deg (azimuth) 10 deg (elevation)
- Connector
- two RP-SMA
- Cross Polarization
- >30 dB
- Diameter x Depth
- 140 x 348 x 82 mm
- Frequency Range
- 5.17 - 5.825 GHz
- Front-to-Back Ratio
- >30 dB
- Polarization
- Vertical and horizontal
- Port to Port Isolation
- >40 dB min
- VSWR
- 1.43 typ, 1.8 max
- Certifications
- CE, ROHS
- Weight
- 734 g
