Mikrotik RB5009UPr+S+IN Wired Router - wired for Home and Office, 7 x Gigabit Ethernet ports, PoE in and PoE out
Key Features
- 7 Gigabit Ethernet Ports: Delivers high-speed network connections with 7 Gigabit Ethernet ports, perfect for home and office use.
- PoE In and Out: Supports both PoE in and PoE out, providing power and data over a single cable for connected devices.
- Versatile Connectivity: Designed to handle multiple wired connections efficiently, ideal for diverse networking environments.
- MikroTik Technology: Integrates advanced MikroTik routing features for enhanced network management and security.
- Compact Design: A robust yet compact solution, offering powerful wired networking capabilities in a space-saving form factor.
Specifications
Q&A
Warranty
wholesale buying guide
General
- CPU core count
- 4
- CPU
- 88F7040
- Certifications
- CE, EAC, ROHS
- Storage size
- 1 GB
- Ambient temperature
- -40°C to 60°C
- Ports
- 7 x Gigabit Ethernet ports | 7 x Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 x Number of 2.5G Ethernet ports | 1 x Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)
- Size of RAM
- 1 GB
- Operating System (OS)
- RouterOS v7
Powering
- DC jack input Voltage
- 24-57 V
- 2-pin terminal input Voltage
- 24-57 V
- Max power consumption without attachments
- 16 W
- Max power consumption
- 150 W
- PoE in input Voltage
- 24-57 V
- Number of DC inputs
- 3 (DC jack, 2-pin terminal, PoE-IN)
PoE-out
- PoE-out ports
- Ether1-Ether8
- PoE out
- 802.3af/at
- Max total out (A)
- 2.59 A
- Total output current
- 2.28
- Max out per port output (input 18-30 V)
- 1 A
- Max out per port output (input 30-57 V)
- 450 mA
- Total output power
- 130
Peripherals
- Number of USB ports
- 1
- USB slot type
- USB type A
- USB Power Reset
- YES
- Max USB current (A)
- 1.5
Tech Specs
- Cooling type
- Passive
- RouterOS license
- 5
- CPU nominal frequency
- 350-1400 (auto) MHz
- PoE in
- 802.3af/at (ether1), Mode B (ether2-ether8)
| Products |
|---|
| Choose your plan |
- 27.90 Gbit/s
- Yes
- Desktop | Wall Mountable | Compact
- Layer 2, Layer 3
- 77.38 Mpps
- 104 Gbps
- 5 Gbit/s
- Yes
- Desktop | Compact | Wall Mountable | Rack-mountable
- CE, EAC, ROHS
- 128 MB
- RouterOS
- CE, EAC, ROHS
- RouterOS
- 64 MB
- -40°C to 60°C
- MIPSBE
- AR9344
Brand New
Fortinet FortiGate FG-90G Manageable Firewall - 27.90 Gbit/s Firewall Throughput, Content Security, AES (256-bit), SHA-256, 2500 VPN, 10 x RJ45 Ports, 2 x Expansion Slots | FG-90G-BDL-950-12
(0.0)
Brand New

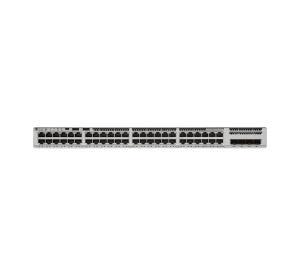

CISCO Catalyst C9300L Managed Switch - 104 Gbps Switching Capacity, Throughput up to 77.38 Mpps, 48 x RJ45, 4 x SFP uplink, Network Advantage
(0.0)
Brand New
Fortinet FortiGate FG-50G-DSL NGFW Manageable Firewall - 5 Gbit/s Firewall Throughput, Intrusion Prevention, AES (256-bit), SHA-256, TLS 1.3, SSL, 5 x RJ45 Ports, x Expansion Slots
(0.0)
Brand New
Brand New
MikroTik PowerBox Pro RB960PGS-PB Wired Router - Outdoor, 5 x Gigabit Ethernet Ports, 1 x SFP Port, PoE-in
(0.0)
Brand New

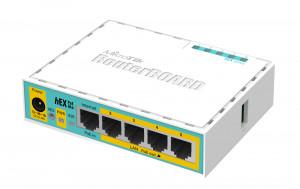

Mikrotik hEX PoE lite (RB750UPr2) Wired Router - Wired For Home and Office, 5 x Gigabit Ethernet Ports, PoE-out
(0.0)
Brand New

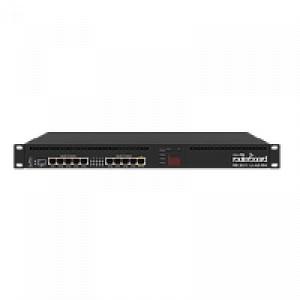

Mikrotik RB2011iL-RM Ethernet Router - 1U rackmount, 5xEthernet, 5xGigabit Ethernet port
