Ubiquiti AirMAX NanoStation M2 CPE (NSM2) Antenna - Point to Point, 2 x10/100 Mb/s Ethernet PoE Ports RJ45, Outdoor 2.4 GHz, 10.4 to 11.2 dBi
Key Features
Robust Outdoor Design: Built for outdoor use, the Ubiquiti NanoStation M2 CPE is weather-resistant and durable, making it suitable for various environmental conditions while maintaining optimal performance for point-to-point wireless communication.
High-Speed Connectivity: Featuring 2 x 10/100 Mb/s Ethernet PoE ports, this device ensures efficient power delivery and network connectivity, allowing for seamless data transmission in point-to-point setups.
2.4 GHz Band Support: Operating on the widely used 2.4 GHz frequency band, the NanoStation M2 enables reliable wireless communication over long distances, providing a solid foundation for various applications in both residential and commercial environments.
Enhanced AirMAX Technology: Utilizing Ubiquiti’s proprietary AirMAX technology, this CPE minimizes latency and maximizes throughput, ensuring high-performance data transmission, even in challenging network conditions with multiple users.
Easy Setup and Configuration: The NanoStation M2 is designed for quick and straightforward installation, allowing users to get connected with minimal effort. Its user-friendly interface simplifies configuration and management, making it an ideal solution for both novice and experienced network administrators.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Antenna gain dBi for 2.4 GHz
- 10.4 to 11.2 dBi
- Storage size
- 8MB
- Ports
- 2 x 10/100 Mb/s Ethernet PoE Ports RJ45 (Unspecified)
- CPU
- MIPS 24Kc (Single-Core Up to 400 MHz)
- Tested ambient temperature
- -30 to 75° C (-22 to 167° F)
- Certifications
- FCC, ICC, CE, RoHS
- Size of RAM
- 32MB
Tech Specs
- Weight
- 0.4 Kg
Powering
- Max power consumption
- 5.5 Watts
- Power Supply
- 24V, 0.5A PoE adapter (Included)
| Products |
|---|
| Choose your plan |
- 176 Gbps
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 1GB DDR3
- 256 MB
- RouterOS / SwitchOS
- 98DX224S
- 10 Gbps
- Yes
- Desktop | Wall Mountable | Rack-mountable
- 200 km/h (125 mph)
- -40 to 70° C (-40 to 158° F)
- FCC, IC, CE, RoHS
- -40°C to 70°C
- MIPSBE
- QCA9533
HPE Aruba 2930M (JL322A) Switch - 44 x Gigabit Ethernet PoE+ Ports, 4 x Gigabit Ethernet BASE-T PoE+ or 100/1000 Mbps SFP Ports

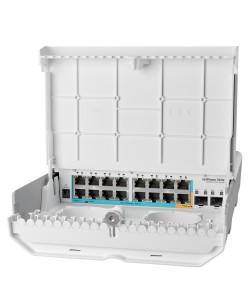

MikroTik netPower 15FR CRS318-1Fi-15Fr-2S-OUT Switch - Outdoor, 16 x Fast Ethernet ports, 2 x SFP ports, PoE-in, PoE-out
