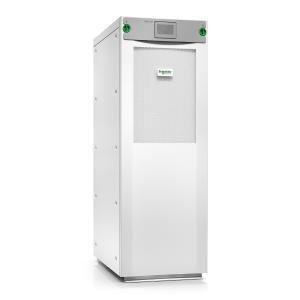

APC GALAXY VS Uninterruptible Power Supply UPS - 480V External battery system Li-Ion (Lithium Ion) VRLA, 480 V 3 phase, Schneider Electric
$ 23800.00
Key Features
High-Efficiency Power Protection – Ensures stable, reliable backup power with advanced Li-Ion VRLA battery technology for extended lifespan and reduced maintenance.
-
480V 3-Phase Output – Provides robust power distribution for demanding enterprise, data center, and industrial environments.
-
Scalable External Battery System – Flexible modular design supports expansion for longer runtime and tailored power backup needs.
-
Comprehensive Power Management – Delivers advanced surge protection, power conditioning, and network management for critical IT and electrical infrastructure.
-
Optimized for Safety & Reliability – Engineered by Schneider Electric with enhanced electrical safety, emergency power readiness, and energy-efficient operation.
Package Dimensions
Width: 39.80 in
Height: 82.00 in
Length: 29.70 in
Weight: 250.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Maximum Configurable Power in VA
- 150 kVA
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Provided Equipment
- Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Battery Voltage
- 480V
- Main Output Voltage
- 480 V 3 phase
- Main Input Voltage
- 480 V 3 phase
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- Battery Type
- External battery system Li-Ion (Lithium Ion) VRLA
- Color
- White
Tech Specs
- Presentation
- Highly efficient, easy-to-deploy 50kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Scalable to 150kW for external batteries. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
- Lead time
- Usually Ships within 2 Weeks
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Weight
- 206 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency at full load
- 408...552 V 480 V
- Maximum Input Current per Phase
- 223 A
- Maximum Short Circuit Withstand (Icw)
- 65 kA
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Output voltage tolerance
- +/-1% after 50ms
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- IEC 62040-1-1 IEC 62040-2 UL 1778 5th edition FCC Part 15 class A IEC 60721-4-2 Level 2M2 UL 924 Listed
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Humidity
- 10%~80%,non-condensing
- Acoustic level
- 64 dBA
- Heat dissipation
- 4915 Btu/h
- IP degree of protection
- IP21
- Control panel
- Touch Screen LCD User Interface
