APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 400 V 3 phase, Schneider Electric, 100 kVA
$ 22500.00
Key Features
High-Capacity 100 kVA Output with 400 V 3-Phase Power – Ensures reliable and stable three-phase electricity to support critical office, industrial, and network systems with minimal downtime.
-
Internal Modular VRLA Battery System – Features maintenance-friendly, long-life VRLA batteries designed for scalability, easy replacement, and optimized energy efficiency.
-
Comprehensive Power Protection and Conditioning – Provides backup power, surge protection, voltage regulation, and emergency support, safeguarding sensitive equipment from blackouts, spikes, and power instability.
-
Advanced Network Power Management – Supports remote monitoring, diagnostics, alerts, and intelligent control, allowing administrators to manage energy usage and prevent unexpected failures.
-
Reliable, Business-Ready Solution – Perfect for data centers, offices, and industrial applications, delivering uninterrupted power, enhanced electrical safety, and stable energy performance for critical operations.
Package Dimensions
Width: 39.80 in
Height: 82.00 in
Length: 29.70 in
Weight: 250.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Maximum Configurable Power in VA
- 100 kVA
- Battery Type
- Internal modular battery VRLA
- Battery Voltage
- 480V
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- Main Input Voltage
- 400 V 3 phase
- Main Output Voltage
- 400 V 3 phase
- Output voltage tolerance
- +/- 5% after 2ms +/-1% after 50ms
- Color
- White
Tech Specs
- Presentation
- Highly efficient, easy-to-deploy 100kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
- Lead time
- Usually Ships within 2 Weeks
- Main Input Voltage
- 380 V 415 V
- Provided Equipment
- Dust filter Installation manual Integrated network management Start-Up Service EcoStruxure Ready
- Dimensions
- L (33.3 in) x W (21.7 in) x H (77.6 in)
- Weight
- 250 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency at full load
- 340...460 V 400 V
- Maximum Input Current per Phase
- 180 A
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Input Power Factor at Full Load
- 0.99
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Output Voltage THD
- < 1% linear load and < 3% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- IEC 62040-1-1 IEC 62040-2 OSHPD
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- 5…104 °F (-15…40 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Storage altitude
- 0…10000 ft (0…3048 m)
- Acoustic level
- 65 dBA
- Heat dissipation
- 12377 Btu/h
- IP degree of protection
- IP20
- Control panel
- Touch Screen LCD User Interface
| Products |
|---|
| Choose your plan |
- Non-Touch
- Black
- IPS
- Laser
- (AMS+APJ) HP 215A Black LaserJet Toner Cartridge (~1050 yield) W2310A; HP 215A Cyan LaserJet Toner Cartridge (~850 yield) W2311A; HP 215A Yellow LaserJet Toner Cartridge (~850 yield) W2312A; HP 215A Magenta LaserJet Toner Cartridge (~850 yield) W2313A; (EMEA) HP 216A Black LaserJet Toner Cartridge (~1050 yield) W2410A; HP 216A Cyan LaserJet Toner Cartridge (~1050 yield) W2411A; HP 216A Yellow LaserJet Toner Cartridge (~850 yield) W2412A; HP 216A Magenta LaserJet Toner Cartridge (~850 yield) W2413A
- 20000 to 50000 Scans
- 110 ppm / 220 ipm
- 300 sheets
- Non-Touch
- Black
- 165 Hz
- Non-Touch
- Black
- 75Hz
- External battery system
- 480V
- 384 V DC
- 480V
- < 1% linear load and < 3% non-linear load
- 384 V DC
- 480-576VDC
- 150 kVA
- 384 V DC
Brand New
BENQ PD2725U DESIGNVUE Monitor - 27" 4K (3840 x 2160), IPS, HDMI, DP, 400 nits, 60 Hz
(0.0)
$740 $800
Brand New
HP Color LaserJet Pro M155NW Printer - Wireless, A4, 17 ppm, Up to 600 x 600 dpi Resolution, Up to 30,000 pages Duty Cycle
(0.0)
$290 $330
Brand New

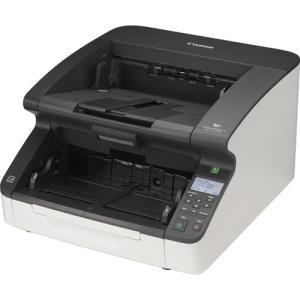

CANON IMAGEFORMULA DR-G2110 Scanner - RGB LED, 600dpi, 110 ppm / 220 ipm, 20000 to 50000 Scans
