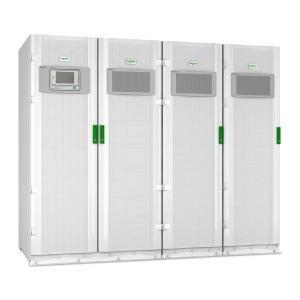

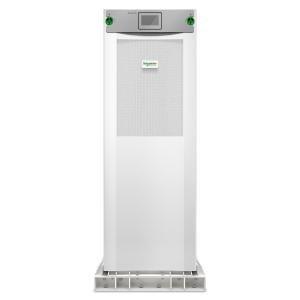

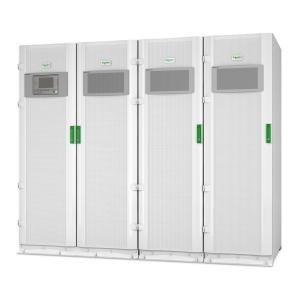

APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 400 V 3 phase, Schneider Electric, 60 kW

Name: APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 400 V 3 phase, Schneider Electric, 60 kW
Brand: APC
Price: 17000.00 USD
Availability: InStock

$ 17000^.00

APC-GVSUPS60K0B5HS

MPN #GVSUPS60K0B5HS

Questions⁽²⁾ Answers⁽²⁾

BRAND NEW

Express Shipping

2-6 Days, via DHL, FedEx, EMS, etc.

Reviews

High-Performance Power Backup – Ensures continuous operation with a reliable 480V internal modular VRLA battery system, delivering stable backup power during outages.
400 V 3-Phase Output Voltage – Designed for demanding environments such as data centers, offices, and industrial setups, offering balanced and efficient three-phase power distribution.
Advanced Power Protection – Protects connected equipment from power failures, surges, fluctuations, and electrical disturbances, ensuring business continuity.
Modular & Scalable Design – Internal modular architecture allows flexible expansion, simplified servicing, and reduced downtime for maximum efficiency.
Smart Energy Management – Integrated with Schneider Electric’s intelligent monitoring and control systems for real-time power management and optimization.
Enhanced Electrical Safety – Provides surge protection, power conditioning, and stable voltage output to safeguard sensitive IT and networking equipment.

Package Dimensions

Width: 39.80 in

Height: 82.00 in

Length: 29.70 in

Weight: 250.00 kg

Specifications

Q&A

Warranty

wholesale buying guide

General

Maximum Configurable Power in VA: 60 kVA
Battery Type: Internal modular battery VRLA
Battery Voltage: 480V
End of Discharge Battery Voltage: 384 V DC
Product or Component Type: Uninterruptible power supply (UPS)
Main Input Voltage: 400 V 3 phase
Main Output Voltage: 400 V 3 phase
Output voltage tolerance: +/- 5% after 2ms +/-1% after 50ms
Battery power in VAH: 0 VAh runtime
Color: White

Tech Specs

Presentation: Highly efficient, easy-to-deploy 60kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Lead time: Usually Ships within 2 Weeks
Main Input Voltage: 380 V 415 V
Provided Equipment: Dust filter Installation manual Integrated network management Start-Up Service EcoStruxure Ready
Dimensions: L (33.3 in) x W (21.7 in) x H (77.6 in)
Weight: 281 kg
Input Frequency: 40 - 70 Hz
Efficiency at full load: 340...460 V 400 V
Maximum Short Circuit Withstand (Icw): 65 kA
Input Total Harmonic Distortion: Less than 3% for full load
Load power factor: From 0.7 leading to 0.7 lagging without any derating
Input Power Factor at Full Load: 0.99
Max Configurable Power (Watts): 60 kW
Output Frequency: 50 Hz sync to mains 60 Hz sync to mains
Crest factor: 2.5
Waveform Type: Sine wave
Output voltage tolerance: +/- 5% after 2ms +/-1% after 50ms
Output Voltage THD: < 1% linear load and < 3% non-linear load
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Standards: IEC 62040-1-1 IEC 62040-2 OSHPD
Ambient Air Temperature for Operation: 32…104 °F (0…40 °C)
Relative Humidity: 0…95 % non-condensing
Operating altitude: 0...3300 ft
Ambient Air Temperature for Storage: 5…104 °F (-15…40 °C)
Storage Relative Humidity: 10…80 % non-condensing
Storage altitude: 0…10000 ft (0…3048 m)
Acoustic level: 54 dBA
Heat dissipation: 7103 Btu/h
IP degree of protection: IP20
Control panel: Touch Screen LCD User Interface
