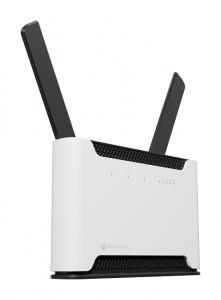

MikroTik Chateau LTE6 ax Chateau (S53UG+5HaxD2HaxD-TC&FG621-EA) Wireless router - Wireless for home and Office, LTE, 4 x Gigabit Ethernet, Dual-Band
MPN #S53UG+5HaxD2HaxD-TC&FG621-EA
Express Shipping
out of 5 stars
Key Features
- LTE Connectivity: Stay connected with high-speed LTE internet, ensuring reliable access for both home and office environments.
- Dual-Band Support: Experience enhanced wireless performance with support for dual-band frequencies, minimizing interference and maximizing throughput.
- Gigabit Ethernet Ports: Enjoy fast and stable wired connections with four Gigabit Ethernet ports, perfect for connecting multiple devices with high bandwidth requirements.
- Versatile Deployment: Suitable for various settings, including homes and offices, providing flexible networking solutions to meet different needs.
- Wireless Access Point: Acts as a wireless access point, extending network coverage and allowing wireless devices to connect seamlessly, enhancing connectivity throughout the space.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, EAC, ROHS
- Storage size
- 128 MB
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Wireless 2.4 GHz generation
- Wi-Fi 6
- CPU core count
- 4
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz
- 4
- Wireless 5 GHz generation
- Wi-Fi 6
- Antenna gain dBi for 2.4 GHz
- 2
- Ambient temperature
- -40 to +70C
- Ports
- 4 x Gigabit Ethernet | 1 x 2.5G Ethernet | 1 x (Micro SIM) | 1 x USB Power Reset | 1 x USB type A
- CPU
- IPQ-6010
- Size of RAM
- 1 GB
Powering
- Cooling type
- Passive
- DC jack input Voltage
- 12-28 V
- Max power consumption
- 17 W
- Number of DC inputs
- 1 (DC jack)
- Max power consumption without attachments
- 13 W
Mobile
- 3G Category
- R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO UL
- 1x1
- LTE Category
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- 3G bands
- 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- MIMO DL
- 2x2
- TAC
- 86335904
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
Tech Specs
- RouterOS license
- 4
- Storage type
- NAND
- IP
- 20
- Architecture
- ARM 64bit
- Wireless 5 GHz number of chains
- 2
- WiFi speed
- AX1800
- CPU nominal frequency
- auto MHz
- Max Transmit power of 2.4 GHz
- 24 dBm
- Wireless 2.4 GHz number of chains
- 2
- Max Transmit power of 5 GHz
- 24
- MTBF
- Approximately 200'000 hours at 25C
- Operating System (OS)
- RouterOS v7
