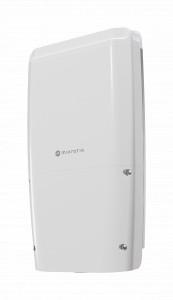

MikroTik FiberBox Plus (CRS305-1G-4S+OUT) Switch - Outdoor, 1 x Gigabit Ethernet port, 4 x SFP+ ports, RJ45, PoE-in
Express Shipping
out of 5 stars
Key Features
Versatile Port Configuration: Equipped with 24 Gigabit Ethernet ports and 4 SFP+ ports, providing flexibility for various network setups and connectivity options.
Power over Ethernet (PoE): Supports PoE-out functionality, enabling the powering of connected devices such as IP cameras and wireless access points directly through the Ethernet cables.
High-Speed Connectivity: The SFP+ ports allow for high-speed fiber connections, supporting data rates up to 10 Gbps for increased bandwidth and reduced latency in demanding environments.
Robust Outdoor Design: The MikroTik FiberBox Plus (CRS305-1G-4S+OUT) is specifically designed for outdoor use, ensuring durability and reliability in harsh weather conditions.
Compact and Efficient: Both switches offer compact designs, making them ideal for various installation environments while maintaining high performance and energy efficiency
Specifications
Q&A
Warranty
wholesale buying guide
General
- RouterOS license
- 5
- Operating System
- RouterOS v7 / SwOS
- Ambient temperature
- -40°C to 70°C
- Storage size
- 16 MB
- CPU core count
- 2
- Ports
- 1 x Gigabit Ethernet ports | 4 x SFP+ ports | RJ45
- Certifications
- CE, EAC, ROHS
- Size of RAM
- 256 MB
Powering
- Number of DC inputs
- 3 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage
- 24-57 V
- 2-pin terminal input Voltage
- 24-57 V
- Max power consumption
- 17 W
- Max power consumption without attachments
- 7 W
- PoE in input Voltage
- 42-57 V
Tech Specs
- CPU nominal frequency
- 800 MHz
- Cooling type
- Passive
- RouterOS license
- 5
- PoE in
- 802.3af/at
