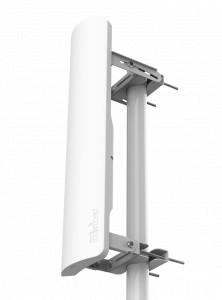

Mikrotik mANT 19S MTAS-5G-19D120 - Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors
Key Features
5 GHz Frequency Support: Specifically designed to operate in the 5 GHz range, ensuring optimal performance for high-speed wireless applications, particularly in outdoor environments.
Dual-Polarization: Equipped with dual-polarization capabilities, this antenna enhances signal strength and reliability by supporting both horizontal and vertical polarizations, providing stable and consistent connections.
19 dBi Gain: Features a high-gain 19 dBi antenna that boosts signal strength, allowing for extended coverage and improved signal reception, ideal for point-to-point and point-to-multipoint deployments.
120° Beamwidth: With a wide 120-degree beamwidth, it provides excellent coverage over a broad area, making it suitable for sectoral coverage in wireless networking applications.
RP-SMA Connectors: Comes with two RP-SMA connectors, ensuring compatibility with a wide range of devices and facilitating easy installation and connection to your network equipment.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Connector
- two RP-SMA
- Cross Polarization
- >30 dB
- Frequency Range
- 5.17 - 5.825 GHz
- Front-to-Back Ratio
- >30 dB
- Polarization
- Vertical and horizontal
- Port to Port Isolation
- >40 dB min
- VSWR
- 1.43 typ, 1.8 max
- Beamwidth
- 120 deg (azimuth) 5 deg (elevation)
- Weight
- 1270 g
