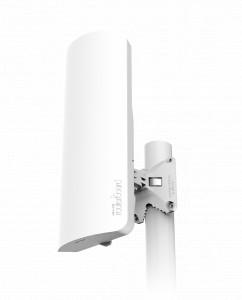

Mikrotik mANTBox 52 15s RBD22UGS-5HPacD2HnD-15S
$ 214.80
Key Features
The mANTBox 52 15s is a high-performance wireless access point with an ARM 32bit architecture and IPQ-4019 CPU. It features passive cooling, IPsec hardware acceleration, and RouterOS operating system with a 4-license. The device has two DC inputs, 1 10/100/1000 Ethernet port, 1 SFP port, and 1 USB port with USB power reset. It has wireless connectivity for both 2.4 GHz and 5 GHz with maximum data rates of 300 Mbit/s and 867 Mbit/s, respectively. The device has an IP55 rating and is certified by CE, FCC, IC, EAC, and ROHS.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- auto MHz
- Switch chip model
- IPQ-4019
- Operating System
- RouterOS
- L3 Cache
- 16 MB
- Storage type
- FLASH
- Ambient temperature
- -40°C to +70°C
- vPro Support
- Yes
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-57 V
- Cooling type
- Passive
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Memory Slots
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 12
- Wireless 2.4 GHz chip model
- IPQ-4019
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 15
- Wireless 5 GHz chip model
- IPQ-4019
- Wireless 5 GHz generation
- Wi-Fi 5
- 10/100/1000 Ethernet ports
- 1
- Number SFP Ports
- 1
- Number of USB ports
- 1
- vPro Support
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- RouterOS license
- 4
- vPro Support
- Yes
- vPro Support
- Yes
- 1MBit/s
- 30
- 11MBit/s
- 30
- 54MBit/s
- 27
- MCS0
- 30
- MCS7
- 26
- MCS9
- 23
- Certifications
- CE, FCC, IC, EAC, ROHS
- Wireless 2.4 GHz generation
- Wi-Fi 4
- IP
- IP55
- 6MBit/s
- 30
- MTBF
- Approximately 200'000 hours at 25C
- Memory (RAM)
- 256MB
- Dimensions
- 140 x 348 x 82 mm
