TP-LINK TL-SF1005P V5 Switch - 5 × Fast Ethernet RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports), AUTO MDI/MDIX
Key Features
5 Fast Ethernet Ports: Features 5× Fast Ethernet RJ45 ports, providing reliable connectivity for a variety of network devices in home or small office environments.
PoE+ Support: Four of the ports support Power over Ethernet (802.3af/at), allowing you to power devices like IP cameras and access points directly through the Ethernet cable, reducing clutter.
Auto MDI/MDIX: Automatically detects and configures the connection type, ensuring compatibility with both straight-through and crossover cables for hassle-free installation.
Plug and Play Setup: Designed for user convenience, this switch requires no configuration, allowing for quick and easy network expansion without technical expertise.
Compact Design: The TL-SF1005P V5 features a space-saving design, making it suitable for desktop or wall-mounted installations in tight spaces while maintaining robust network performance.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, FCC, RoHS
- Switching Bandwidth
- 1 Gb/s
- Ports
- 5× Fast Ethernet RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) | AUTO MDI/MDIX
- Ambient temperature
- 0–40 ℃ (32–104 ℉)
Tech Specs
- Fan Quantity
- Fanless
- Packet Forwarding Rate
- 0.744 Mpps
Powering
- External Power Supply
- External Power Adapter (Output: 53.5 V DC / 1.31 A)
- Max power consumption
- 3.44 W (220 V / 50 Hz, no PD connected) | 74.49 W (220 V / 50 Hz, with 67 W PD connected)
| Products |
|---|
| Choose your plan |
- 16GB eMMC
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 48 x Gigabit Ethernet BASE-T ports, 4 x 1G/10G SFP ports
- 24 x 1Gbps RJ45 Ports | 4 x 1Gbps fixed (uplinks)
- 56 Gbps
- 8GB
- CE, FCC, IC
- 4 x 10 GbE PoE (Unspecified) RJ45 | 2 x SFP + 10 GbE | 1 x LAN RJ45
- 120 Gb/s 60 Gb/s (Non-Blocking)
- Layer 2
- 56 Gbit/s
- 41.66 Mpps
- Approximately 200'000 hours at 25C
- 5
- FLASH

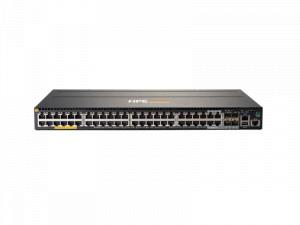

HPE Aruba CX 6100 (JL676A) Switch - 48 x Gigabit Ethernet BASE-T ports, 4 x 1G/10G SFP ports
