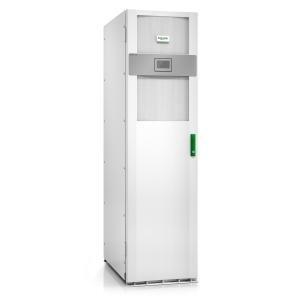

APC GALAXY VS Uninterruptible Power Supply UPS - 384-480VDC External battery system Li-Ion (Lithium Ion)VRLA, 208 V 3 phase, Schneider Electric, 75 kVA
Key Features
High-Capacity 75 kVA Output – Delivers stable and reliable 208V 3-phase power, ensuring uninterrupted energy supply for critical business and industrial operations.
-
External Battery System – Utilizes Li-Ion and VRLA batteries for extended runtime, efficient energy storage, and low maintenance requirements.
-
Comprehensive Power Protection – Includes surge protection, voltage stabilization, and emergency backup to safeguard sensitive equipment from power interruptions and fluctuations.
-
Advanced Power Management – Offers intelligent monitoring, predictive maintenance, and real-time performance tracking to maximize energy efficiency and reliability.
-
Versatile Deployment – Perfect for offices, commercial facilities, and network infrastructures, providing a dependable UPS solution with 208V 3-phase output for professional environments.
Package Dimensions
Specifications
Q&A
Warranty
wholesale buying guide
General
- Main Output Voltage
- 208 V 3 phase
- Main Input Voltage
- 208 V 3 phase
- Battery Voltage
- 384-480VDC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- End of Discharge Battery Voltage
- 307 V DC
- Output voltage tolerance
- +/-1% after 50ms
- Maximum Short Circuit Withstand (Icw)
- 65 kA
- Color
- White
Tech Specs
- Presentation
- Highly efficient, easy-to-deploy 75kW, 208V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service.
- Lead time
- Usually Ships within 2 Weeks
- Other Output Voltages
- 200 V 220 V
- Provided Equipment
- Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Weight
- 290 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency at full load
- 177...239 V 208 V
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Output voltage tolerance
- +/-1% after 50ms
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- IEC 62040-1-1 IEC 62040-2 UL 1778 5th edition FCC Part 15 class A IEC 60721-4-2 Level 2M2 UL 924 Listed
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Acoustic level
- 68 dBA
- Heat dissipation
- 16137 Btu/h
- IP degree of protection
- IP21
- Control panel
- Touch Screen LCD User Interface
