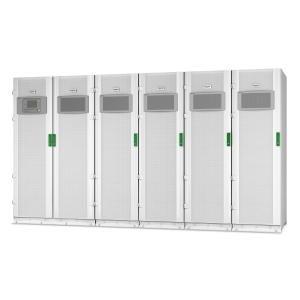

APC GALAXY VS Uninterruptible Power Supply UPS - 480V External battery system Li-Ion (Lithium Ion) VRLA, 480 V 3 phase, Schneider Electric

Name: APC GALAXY VS Uninterruptible Power Supply UPS - 480V External battery system Li-Ion (Lithium Ion) VRLA, 480 V 3 phase, Schneider Electric
Brand: APC
Price: 23000.00 USD
Availability: InStock

$ 23000^.00

APC-GVSUPS50K0B4GS

MPN #GVSUPS50K0B4GS

Questions⁽²⁾ Answers⁽²⁾

BRAND NEW

Express Shipping

2-6 Days, via DHL, FedEx, EMS, etc.

Reviews

Reliable Power Backup – Delivers continuous and stable uninterruptible power supply for offices, data centers, and industrial operations.
External Li-Ion VRLA Battery System – Supports scalable lithium-ion battery solutions with 480V capacity, providing extended runtime and durability.
480V 3-Phase Output – Ensures high-efficiency three-phase power distribution for critical business and IT infrastructures.
Advanced Power Protection – Safeguards against surges, fluctuations, and interruptions, ensuring electrical safety and system stability.
Smart Power Management – Managed by Schneider Electric’s intelligent systems, enabling efficient monitoring, network power control, and optimized energy use.

Package Dimensions

Width: 39.00 in

Height: 66.10 in

Length: 25.20 in

Weight: 250.00 kg

Specifications

Q&A

Warranty

wholesale buying guide

General

Maximum Configurable Power in VA: 50 kVA
Battery Voltage: 480V
End of Discharge Battery Voltage: 384 V DC
Product or Component Type: Uninterruptible power supply (UPS)
Output Voltage THD: < 1% linear load and < 5% non-linear load
Output voltage tolerance: +/-1% after 50ms
Main Output Voltage: 480 V 3 phase
Battery power in VAH: 0 VAh runtime
Color: White

Tech Specs

Presentation: Highly efficient, easy-to-deploy 50kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Lead time: Usually Ships within 2 Weeks
Provided Equipment: Dust filter Installation manual Integrated network management Start-Up Service EcoStruxure Ready
Battery power in VAH: 0 VAh runtime
Dimensions: L (33.3 in) x W (20.5 in) x H (58.5 in)
Weight: 200 kg
Input Frequency: 40 - 70 Hz
Efficiency at full load: 408...552 V 480 V
Maximum Input Current per Phase: 74 A
Maximum Short Circuit Withstand (Icw): 65 kA
Input Total Harmonic Distortion: Less than 3% for full load
Load power factor: From 0.7 leading to 0.7 lagging without any derating
Input Power Factor at Full Load: 0.99
Max Configurable Power (Watts): 50 kW
Harmonic distortion: Less than 5%
Crest factor: 2.5
Waveform Type: Sine wave
Output voltage tolerance: +/-1% after 50ms
Output Voltage THD: < 1% linear load and < 5% non-linear load
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Standards: CSA C22.2 No 107.3 FCC Part 15 class A IEC 62040-1-1 IEC 62040-2 IEC 62040-3 UL 1778 5th edition OSHPD
Ambient Air Temperature for Operation: 32…104 °F (0…40 °C)
Relative Humidity: 0…95 % non-condensing
Operating altitude: 0...3300 ft
Ambient Air Temperature for Storage: 5…104 °F (-15…40 °C)
Humidity: 10%~80%,non-condensing
Storage altitude: 0…10000 ft (0…3048 m)
Acoustic level: 61 dBA
Heat dissipation: 5210 Btu/h
IP degree of protection: IP20
Control panel: Touch Screen LCD User Interface
