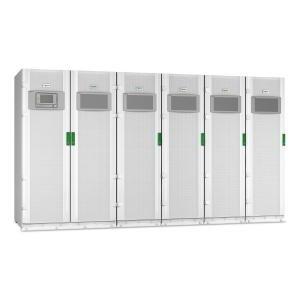

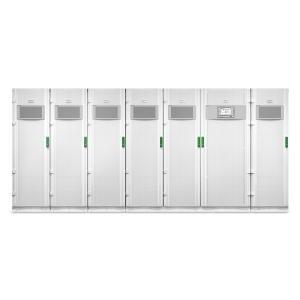

APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 400 V 3 phase, Schneider Electric

Name: APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 400 V 3 phase, Schneider Electric
Brand: APC
Price: 19360.00 USD
Availability: InStock

$ 19360^.00

APC-GVSUPS40KR0B5HS

MPN #GVSUPS40KR0B5HS

Questions⁽²⁾ Answers⁽²⁾

BRAND NEW

Express Shipping

2-6 Days, via DHL, FedEx, EMS, etc.

Reviews

High-Performance UPS – Provides reliable uninterruptible power for critical applications, ensuring continuous operation in offices, data centers, and industrial setups.
Internal Modular VRLA Battery – Features a modular design for easy maintenance, scalable runtime, and improved overall efficiency during power outages.
Stable 400V 3-Phase Output – Delivers consistent three-phase power, protecting sensitive equipment and supporting high-demand electrical loads.
Advanced Power Protection – Offers surge protection, power conditioning, and electrical safety features to prevent damage to connected devices.
Schneider Electric Engineering & Management – Built under Schneider Electric standards, enabling smart power management, network monitoring, and emergency backup for mission-critical systems.

Package Dimensions

Width: 39.80 in

Height: 82.00 in

Length: 29.70 in

Weight: 250.00 kg

Specifications

Q&A

Warranty

wholesale buying guide

General

Battery Voltage: 480V
Output Voltage THD: < 1% linear load and < 3% non-linear load
End of Discharge Battery Voltage: 384 V DC
Product or Component Type: Uninterruptible power supply (UPS)
Battery power in VAH: 0 VAh runtime
Maximum Configurable Power in VA: 40 kVA
Main Input Voltage: 400 V 3 phase
Main Output Voltage: 400 V 3 phase
Output voltage tolerance: +/- 5% after 2ms +/-1% after 50ms
Color: White

Tech Specs

Maximum Input Current per Phase: 72 A
Efficiency at full load: 340...460 V 400 V
Weight: 296 kg
Dimensions: L (33.3 in) x W (21.7 in) x H (77.6 in)
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Bypass type: Built-in Static Bypass
Standards: IEC 62040-1-1 IEC 62040-2 OSHPD
Ambient Air Temperature for Operation: 32…104 °F (0…40 °C)
Relative Humidity: 0…95 % non-condensing
Operating altitude: 0...3300 ft
Ambient Air Temperature for Storage: 5…104 °F (-15…40 °C)
Storage Relative Humidity: 10…80 % non-condensing
Storage altitude: 0…10000 ft (0…3048 m)
Acoustic level: 54 dBA
Heat dissipation: 4412 Btu/h
IP degree of protection: IP20
Control panel: Touch Screen LCD User Interface
Presentation: Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Maximum Short Circuit Withstand (Icw): 65 kA
Input Frequency: 40 - 70 Hz
Provided Equipment: Dust filter Installation manual Integrated network management Start-Up Service EcoStruxure Ready
Lead time: Usually Ships within 2 Weeks
Input Total Harmonic Distortion: Less than 6 % for full load
Load power factor: From 0.7 leading to 0.7 lagging without any derating
Input Power Factor at Full Load: 0.99
Max Configurable Power (Watts): 40 kW
Harmonic distortion: Less than 3%
Output Frequency: 50 Hz sync to mains 60 Hz sync to mains
Crest factor: 2.5
Waveform Type: Sine wave
Output voltage tolerance: +/- 5% after 2ms +/-1% after 50ms
Output Voltage THD: < 1% linear load and < 3% non-linear load
