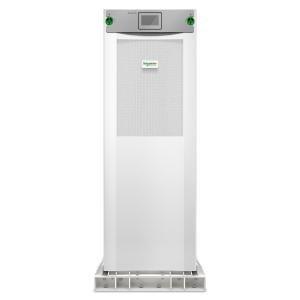

APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 480 V 3 phase, Schneider Electric
Key Features
High-Efficiency Internal Modular VRLA Battery System – Designed for seamless backup power, the internal modular batteries provide reliable energy storage, ensuring uninterrupted operation for critical systems during power outages.
-
480 V 3-Phase Power Output – Delivers stable, consistent, and balanced power for commercial, industrial, and data center environments, supporting high-demand equipment with precision.
-
Advanced Power Protection & Conditioning – Protects sensitive electronic devices from surges, voltage fluctuations, and electrical instability, maintaining optimal performance and longevity of connected equipment.
-
Comprehensive Networked Power Management – Enables monitoring and control for office, home, and enterprise devices, including routers, switches, and servers, ensuring operational continuity and efficiency.
-
Engineered by Schneider Electric for Safety & Reliability – Combines electrical safety, emergency power readiness, and system stability, providing a robust solution for critical infrastructure and mission-critical applications.
Package Dimensions
Specifications
Q&A
Warranty
wholesale buying guide
General
- Maximum Configurable Power in VA
- 50 kVA
- Battery Voltage
- 480V
- Main Output Voltage
- 480 V 3 phase
- Main Input Voltage
- 480 V 3 phase
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- Battery Type
- Internal modular battery VRLA
- Color
- White
Tech Specs
- Weight
- 460 kg
- Provided Equipment
- Battery modules ship installed Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Presentation
- Highly efficient, easy-to-deploy 50kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab. (600V options available for Canada / Options disponibles pour le Canada)
- Max Configurable Power (Watts)
- 50 kW
- Maximum Input Current per Phase
- 74 A
- Input Total Harmonic Distortion
- Less than 3% for full load
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Input Power Factor at Full Load
- 0.99
- Efficiency at full load
- 408...552 V 480 V
- Input Frequency
- 40 - 70 Hz
- Lead time
- Usually Ships within 2 Weeks
- Waveform Type
- Sine wave
- Crest factor
- 2.5
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output voltage tolerance
- +/-1% after 50ms
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Bypass type
- Built-in Static Bypass
- Standards
- CSA C22.2 No 107.3 FCC Part 15 class A IEC 62040-3 IEC 60721-4-2 Level 2M2 UL 1778 5th edition
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3281 ft
- Ambient Air Temperature for Storage
- 5…104 °F (-15…40 °C)
- Humidity
- 10%~80%,non-condensing
- Storage altitude
- 0…10000 ft (0…3048 m)
- Acoustic level
- 61 dBA
- Heat dissipation
- 5210 Btu/h
- IP degree of protection
- IP20
- Control panel
- Touch Screen LCD User Interface
