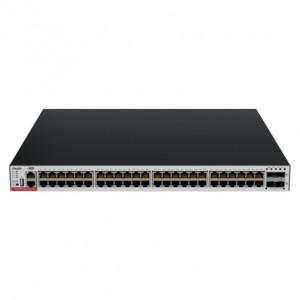

EnGenius EWS7952FP Cloud Managed Switch - 104 Gbps switching Capacity, Throughput up to 77.376 Mpps, 740W PoE Capability, 48 x RJ45, 4 x SFP
.png&w=3840&q=75)
Key Features
- High-Speed Performance: 104 Gbps switching capacity with up to 77.376 Mpps throughput for seamless data flow.
- Powerful PoE Capability: 740W PoE budget to support high-power devices like IP cameras, access points, and VoIP phones.
- Extensive Connectivity: 48 × Gigabit RJ45 ports for wired devices and 4 × SFP ports for fiber uplink and network expansion.
- Cloud-Managed Convenience: Remote monitoring, configuration, and management via the EnGenius Cloud platform.
- Advanced Layer 2+ Features: VLAN, QoS, Link Aggregation, and security enhancements for optimized network performance.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Switching Capacity
- 104 Gbps
- Storage size
- 32 MB
- Ports
- 48 × Gigabit Mbps Ports | 4 x Gigabit SFP Ports
- Throughput rate
- 77.376 Mpps
- Layer Services Supported
- Layer 2+
- Size of RAM
- 256 MB
Tech Specs
- Operating Temprature
- 32°F to 122°F (0°C to 50°C)
- Weight
- 6.4kg
- MAC Address Table
- 8K
- Dimensions
- L (16.14 in) × W (17.32 in) × H (1.73 in)
Powering
- PoE Capability
- 740 Watts
- Power Supply
- 100 ~ 240VAC, 50-60Hz 12A
