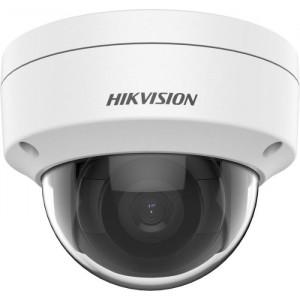

Hikvision 4MP Smart Hybrid Light Fixed Dome (DS-2CD1143G2-LIU) Camera - QHD (2560 × 1440), 1/3" Progressive Scan CMOS Sensor, Fixed focal lens, Weatherproof, Outdoor, PoE Connect power
Key Features
QHD 4MP Resolution: Delivers clear, high-definition video with 2560 × 1440 resolution for detailed surveillance footage.
Advanced Smart Hybrid Light Technology: Enhances night vision with intelligent lighting for clear images in low-light conditions.
Powerful IR Night Vision: Offers 30 meters of IR night vision for continuous monitoring, even in complete darkness.
Motion Detection and Alarm: Supports advanced motion detection, triggering alarms based on specific target types like humans and vehicles.
Weatherproof and Durable: Designed for outdoor use with an IP67 weather-resistant rating, ensuring reliable operation in harsh environments.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- Lens
- Fixed focal lens | 2.8 and 4 mm optional
- Night Vision Range
- 30 m IR cut filter
- Resolution
- QHD (2560 × 1440)
- Sensor
- 1/3" progressive scan CMOS
- View Angle
- 2.8 mm (H 98.0°, V 53.1°, D 54°) | 4 mm (H 78°, V 42°, D 93°)
- Basic Event
- Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Tech Specs
- Record Audio
- Mono sound
- Lens Mount
- M12
- Video Bit Rate
- 32 Kbps to 8 Mbps
- Bit Rate Control
- CBR,VBR
- Audio Sampling Rate
- 8 kHz/16 kHz
- Simultaneous Live View
- Up to 6 channels
- Wide Dynamic Range
- 120 dB
- Shutter Time
- 1/3 s to 1/100,000 s
- Max Frame Rate
- 50 Hz 20 fps (2560 × 1440)
- Min Illumination
- Color 0.005 Lux @ (F1.6, AGC ON) | B/W 0 Lux with IR
- DORI
- 2.8 mm (D (63 m), O (25 m), R (12 m), I (6 m)) | 4 mm (D (78 m), O (31 m), R (15 m), I (7 m))
- Video Compression
- Main stream (H.265+/H.265/H.264+/H.264) | Sub-stream (H.265/H.264/MJPEG)
- Angle Adjustment
- Pan (0° to 355°) | tilt (0° to 75°) | rotate (0° to 355°)
Powering
- Max power consumption
- 7.5 Watts
- Power method
- PoE
- PoE
- IEEE 802.3af, Class 3
