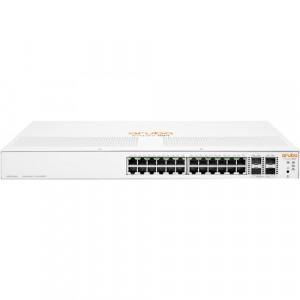

HPE Aruba CX 6300M (JL660A) Switch - 24 x 5 GbE PoE++ Ports RJ45, 4 x SFP 25 GbE WAN, 2 x USB, 1 x RJ45 LAN OOBM port
Key Features
Robust Power Over Ethernet: Equipped with 24 x 5 GbE PoE++ RJ45 ports, this switch delivers up to 60W per port, ensuring reliable power for high-performance devices such as IP phones, security cameras, and wireless access points, minimizing the need for external power supplies.
High-Speed WAN Connectivity: The switch features 4 x SFP 25 GbE WAN ports, providing exceptional bandwidth for uplinks to core networks and data centers, facilitating efficient data transfers and reducing network congestion.
Flexible Management Interfaces: The 2 x USB ports (1 x USB-C and 1 x USB-A) enable convenient access for firmware updates, configuration backups, and file transfers, enhancing the overall management experience for network administrators.
Secure Out-of-Band Management: A dedicated RJ45 LAN OOBM port allows for isolated management of the switch, providing a secure channel for administration tasks and troubleshooting without affecting the data traffic, ensuring uninterrupted network operations.
Scalable and High-Performance Design: The HPE Aruba CX 6300M is built for scalability, supporting dynamic workloads in enterprise environments, while its advanced architecture guarantees high performance, making it an excellent choice for organizations looking to future-proof their networks.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Storage size
- 32GB
- CPU
- ARM Cortex A72 (Quad-Core Up to 1.8 GHz)
- Ports
- 24 x 5 GbE PoE++ (60 W, 802.3bt Type 3) Ports RJ45 | 4 x SFP 25 GbE WAN | 1 x USB-C | 1 x USB-A | 1 x RJ45 LAN OOBM port
- Switching Bandwidth
- 640 Gb/s
- Certifications
- EN, FCC, ICES, VCCI, UL, CSA, IEC, CAN
- Size of RAM
- 8GB DDR4
Tech Specs
- Latency
- 1Gbps 4.24μSec | 10Gbps 1.50μSec | 25Gbps 2.91μSec | 50Gbps 3.49μSec
- Layer Services Supported
- Layer 2, Layer 3, Layer 4
- Weight
- 5.42 kg
Powering
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Power Supply Type
- Internal
PoE-out
- PoE Capability
- 1440W
