HPE Aruba 2930F Manageable Switch - 176 Gbps Switching Capacity, Throughput up to 112 Mpps, 740W PoE Capability, 48 x PoE+ RJ45, 4 x SFP+
Key Features
- High Switching Capacity: Offers 176 Gbps switching capacity and throughput of up to 112 Mpps, ensuring optimal performance for high-traffic networks.
- PoE+ Support: Equipped with 48 x Gigabit Ethernet PoE+ ports and 740W PoE capability, enabling power delivery to connected devices such as IP cameras, phones, and access points.
- Layer 2 and Layer 3 Functionality: Provides both Layer 2 and Layer 3 switching, offering flexibility for more complex network configurations and routing tasks.
- Uplink Flexibility: Includes 4 x SFP+ uplink ports for high-speed fiber connections, allowing seamless integration into larger networks.
- Manageability: Designed for simple network management and monitoring, providing full visibility and control over network performance and configuration.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Gigabit Ethernet PoE+ Ports
- 48
- Throughput rate
- 112 Mpps
- Switching Capacity
- 176 Gbps
- Number Of SFP+ Uplinks Ports
- 4
- Layer Services Supported
- Layer 3
Tech Specs
- Compatible Rack Unit
- 1U
- Dimensions
- L (12.77 in) x W (17.42 in) x H (1.73 in)
- Modular
- Switch
- Weight
- 4.79 kg
- Operating Temperature
- 0 °C to 45 °C
- Color
- Black
- Form Factor
- Rack-mountable
Powering
- PoE Capability
- 740W
- Input voltage
- 100–127/200–240 VAC
| Products |
|---|
| Choose your plan |
- 780 Gbps
- 24 x HPE Smart Rate Base-T Class 6 PoE (up to 60W ) ports (MACSEC) | 2 x 10G/25G/50G SFP ports | 2 x 10G/25G SFP ports (MACSEC) | 1 x USB-C Console | 1 x RJ45 Console | 1 x RJ45 OOBM | 1 x USB A
- ARM Cortex A72 (Quad-Core Up to 1.8 GHz)
- 130.95 Mpps
- 8GB
- Layer 2, Layer 3
- 198 Gbit/s
- Yes
- Rack-mountable | Rail-mountable
- 320 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 1GB DDR3
- 84 Gbps
- -5 to 40° C (23 to 104° F)
- CE, FCC, IC
- 780 Gbps
- 24 x HPE Smart Rate Base-T Class 6 PoE (up to 60W ) ports (MACSEC) | 2 x 10G/25G/50G SFP ports | 2 x 10G/25G SFP ports (MACSEC) | 1 x USB-C Console | 1 x RJ45 Console | 1 x RJ45 OOBM | 1 x USB A
- ARM Cortex A72 (Quad-Core Up to 1.8 GHz)
- 8 x Gigabit Ethernet PoE+ Ports RJ45 (30 W, 802.3at) | 2 x SFP Gigabit Ethernet Ports
- 20 Gb/s
- 256 MB
Brand New

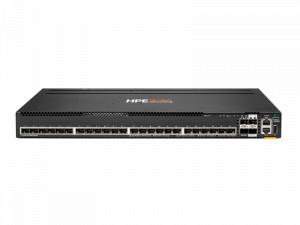

HPE Aruba CX 6300M (R8S89A) Switch - 24 x HPE Smart Rate Base-T ports, 2 x 10G/25G/50G SFP ports, 2 x 10G/25G SFP ports, 1 x USB-C Console, 1 x RJ45 Console Port, 1 x RJ45 OOBM, 1 x USB-A
(0.0)
Brand New
Brand New
CISCO Catalyst 9300L Switch - 176 Gbps Switching Capacity, Throughput up to 130.95 Mpps, 48 x RJ45, 4 x SFP+ Network Essentials
(0.0)
Brand New

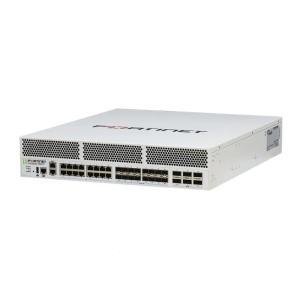

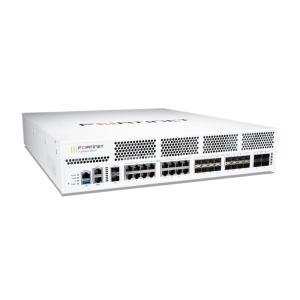

Fortinet FortiGate FG-1800F NGFW Manageable Firewall - 198 Gbit/s Firewall Throughput, SSL, TLS 1.3, SHA-256, AES (256-bit), 10000 VPN, 16 x RJ45 Ports, 26 x Expansion Slots
