MikroTik cAP ax (cAPGi-5HaxD2HaxD) Wireless Access Point - Wireless for Home and Office or hotel, 2 x Gigabit Ethernet Ports, PoE in and PoE out, Dual-Band support
Express Shipping
out of 5 stars
Key Features
- Dual-Band Support: Provides seamless connectivity on both 2.4 GHz and 5 GHz bands, ensuring faster and more reliable wireless performance.
- 2 Gigabit Ethernet Ports: High-speed wired connections for enhanced network stability and throughput in busy environments.
- PoE In and PoE Out: Simplifies setup by allowing both power input and output through Ethernet, powering other devices like IP cameras or phones.
- Versatile Use: Ideal for homes, offices, and hotels, offering strong, reliable coverage across multiple areas.
- MikroTik Quality: Trusted for robust and efficient wireless solutions, perfect for professional or personal network needs
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, FCC, IC, EAC, ROHS
- Storage size
- 128 MB
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Wireless 2.4 GHz generation
- Wi-Fi 6
- CPU core count
- 4
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz generation
- Wi-Fi 6
- Antenna gain dBi for 2.4 GHz
- 6
- Antenna gain dBi for 5 GHz
- 5.5
- Ambient temperature
- -40 to +70C
- Ports
- 2 x Gigabit Ethernet | 1 x Gigabit Ethernet with PoE out | PoE-in
- CPU
- IPQ-6010
- Size of RAM
- 1 GB
- Operating System (OS)
- RouterOS v7
Tech Specs
- Max Transmit power of 2.4 GHz
- 24 dBm
- Wireless 2.4 GHz number of chains
- 2
- RouterOS license
- 4
- Cooling type
- Passive
- Wireless 5 GHz number of chains
- 2
- WiFi speed
- AX1800
- PoE in
- 802.3af/at
- CPU nominal frequency
- auto (864 - 1800) MHz
- Max Transmit power of 5 GHz
- 24 dBm
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 18-57 V
- PoE in input Voltage
- 18-57 V
- Max power consumption without attachments
- 11 W
- Max power consumption
- 36 W
PoE-out
- Max out per port output (input 18-30 V)
- 600 mA
- PoE-out ports
- Ether2
- Max out per port output (input 30-57 V)
- 400 mA
- Max total out (A)
- 600 mA
- Total output current
- 0.4
- Total output power
- 19.2
Products |
---|
Choose your plan |
- 104 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 48 x Gigabit Ethernet Ports RJ45 | 4 x SFP Gigabit Ethernet Ports | 1 x RJ45 LAN | 1 x Micro-USB LAN
- 320 Gbps
- ARM Cortex A9 (Dual core 1GHz)
- 2 GB
- 130 Mpps
- 176 Gbps
- 48 x Gigabit Ethernet Ports | 4 x 10 Gigabit SFP+ uplink | RJ45 Management port
- 3 dBi
- 802.11a/b/g/n/ac/ax
- 802.11a/b/g/n/ac/ax
- -40°C to 70°C
- MIPSBE
- QCA9533
- -40°C to 70°C
- ARM 32bit
- IPQ-4019
- Ceiling /Wall Mounting (Kits included)
- IEEE 802.11ac/n/g/b/a
- 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps

HPE Aruba 2930F (JL260A) Switch - 48 x Gigabit Ethernet Ports RJ45, 4 x SFP Gigabit Ethernet Ports, 1 x RJ45 LAN,1 x Micro-USB LAN

HPE Aruba 3810M (JL430A) Switch - 48 x Gigabit Ethernet Port, 16 x 1/10GbE SFP+ ports, 8 x HPE Smart Rate Multi-Gigabit (1/2.5/5/10GBASE-T) ports, PoE/PoE+

CISCO Meraki MS125 Switch - 176 Gbps Switching capacity, Throughput up to 130 Mpps, 48 x RJ45, 4 x SFP+

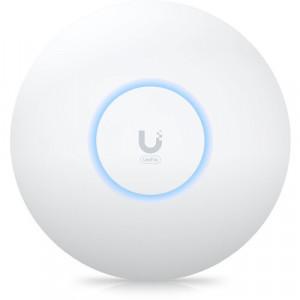

Ubiquiti (UniFi U6+) Wireless Access Point - Wireless for Home and Small Office, 1 x Gigabit Ethernet WAN PoE RJ45, Dual Band Support
