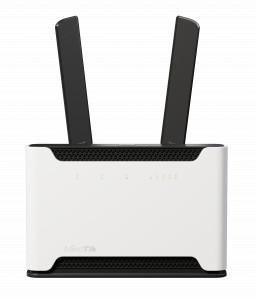

Mikrotik Chateau 5G (D53G-5HacD2HnD-TC&RG502Q-EA) Wireless Router - LTE, Wireless for Home and Small Office, 5 x Gigabit Ethernet, Dual-Band
Express Shipping
out of 5 stars
Key Features
- LTE Connectivity: Enjoy reliable internet access with LTE connectivity, ensuring seamless online experiences for both home and small office environments.
- Dual-Band Support: Enhance wireless performance with support for dual-band frequencies, reducing interference and optimizing network speed.
- Gigabit Ethernet Ports: Benefit from fast and stable wired connections with five Gigabit Ethernet ports, ideal for connecting multiple devices with high bandwidth requirements.
- Versatile Deployment: Suitable for both home and small office settings, providing flexible networking solutions to accommodate various needs.
- Wireless Access Point: Acts as a wireless access point, extending network coverage and facilitating easy wireless connections, making it an essential component for modern connectivity needs.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, EAC, ROHS
- Antenna gain dBi for 5 GHz
- 4
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 5 GHz standards
- 802.11a/n/ac
- Wireless 5 GHz generation
- Wi-Fi 5
- Antenna gain dBi for 2.4 GHz
- 2
- Ambient temperature
- -40°C to 70°C
- Ports
- 5 x Gigabit Ethernet | 1 x USB type A | USB Power Reset | 1 x (Micro SIM)
Powering
- DC jack input Voltage
- 12-28 V
- Number of DC inputs
- 1 (DC jack)
- Max power consumption without attachments
- 17 W
- Max power consumption
- 23W
- Cooling type
- Passive
Tech Specs
- RouterOS license
- 4
- CPU core count
- 4
- Wireless 5 GHz number of chains
- 2
- Storage type
- FLASH
- CPU
- IPQ-4019
- CPU nominal frequency
- 716 MHz
- Processor (CPU)
- Apple M1 Max Chip
- Switch chip model
- IPQ-4019
- Wireless 2.4 GHz number of chains
- 2
- Max Transmit power of 2.4 GHz
- 26 dBm
- Storage size
- 16 MB
- MTBF
- Approximately 200'000 hours at 25C
- Size of RAM
- 256 MB
- Operating System (OS)
- RouterOS v7
Mobile
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- LTE Category
- 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
- 5G NSA FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
- 3G bands
- 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)
- 5G NSA TDD bands
- 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz)
- 5G SA TDD bands
- 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz) / 40 (2300 MHz)
Products |
---|
Choose your plan |
- CE, FCC, IC, EAC, ROHS
- RouterOS
- 433 Mbit/s
- Dual-Band
- 1× Gigabit WAN Port, 4× Gigabit LAN Ports
- WEP,WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
- CE, FCC, IC, E-MARK, EAC, ROHS
- RouterOS
- 64 MB
- 1 x Ethernet Gigabit
- IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- 3x external
- CE, FCC, IC
- 867 Mbit/s
- Wi-Fi 5
- Wi-Fi 6
- 4 dBi
- 802.11a/b/g/n/ac/ax

Mikrotik hAP ac lite TC (RB952Ui-5ac2nD-TC) Wireless Router - Wireless for Home and Office, 5 x Gigabit Ethernet, PoE in and PoE Out, Dual-Band Support

Tp-Link Archer C7 V5 - Wireless Dual Band Gigabit Router for Home & Office with USB Port Speed 5GHz

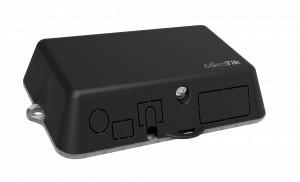

Mikrotik wAP LTE kit (RBwAPR-2nD&R11e-LTE) Wireless Router - Wireless for Home and Office, LTE, Weatherproof, 1 x Fast Ethernet, 2.4 GHz Band support
