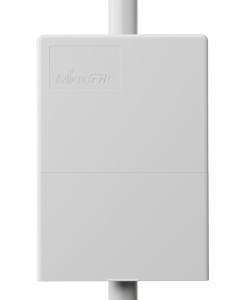

Mikrotik Netfiber 9 (CRS310-1G-5S-4S+OUT) Switch - Outdoor, 1 x Gigabit Ethernet port, 2 x SFP ports, 4 x SFP+ ports, RJ45, PoE-in
Key Features
Diverse Port Configuration: This switch includes 1 Gigabit Ethernet port, 2 SFP ports, and 4 SFP+ ports, offering flexible connectivity options for integrating various devices and optimizing network performance in diverse setups.
Outdoor Durability: Engineered specifically for outdoor applications, the MikroTik Netfiber 9 features a weather-resistant enclosure, ensuring reliable operation in challenging environmental conditions such as rain, heat, and dust.
Advanced Power over Ethernet (PoE) Support: With PoE-in capabilities, the switch can be powered directly through the Ethernet port, simplifying installation by reducing cable clutter and allowing for remote device management.
High-Speed Fiber Connections: The inclusion of 4 SFP+ ports enables lightning-fast fiber connections, supporting data rates up to 10 Gbps, making it ideal for high-bandwidth applications like video surveillance and large data transfers.
Seamless Network Management: MikroTik's RouterOS provides extensive configuration options and user-friendly management tools, allowing network administrators to easily monitor, manage, and optimize their network performance, ensuring maximum uptime and efficiency.
Specifications
Q&A
Warranty
wholesale buying guide
General
- CPU
- 98DX226S
- Operating System
- RouterOS
- Ambient temperature
- -40°C to 70°C
- CPU core count
- 1
- Certifications
- CE, EAC, ROHS
- Storage size
- 16 MB
- Ports
- 1 x Gigabit Ethernet port | 2 x SFP ports | 4 x SFP+ ports | RJ45
- Size of RAM
- 256 MB
Tech Specs
- CPU nominal frequency
- 800 MHz
- Cooling type
- Passive
- RouterOS license
- 5
- PoE in
- 802.3af/at
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 18-57 V
- Max power consumption without attachments
- 10 W
- Max power consumption
- 16.3 W
- PoE in input Voltage
- 18-57 V
