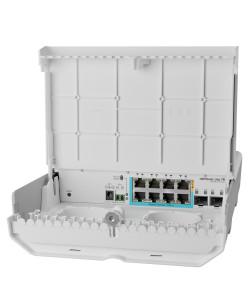

Mikrotik netPower Lite 7R (CSS610-1Gi-7R-2S+OUT) Switch - 8 x Gigabit Ethernet ports, 7 x 1G Ethernet ports with Reverse PoE (PoE-in), 1 x 1G Ethernet ports with PoE-out, 2 x SFP+ ports
Key Features
Reverse PoE Support: Equipped with 7 Gigabit Ethernet ports featuring Reverse PoE (PoE-in), the netPower Lite 7R allows the switch to be powered by devices in remote locations, eliminating the need for dedicated power sources at every installation point.
Versatile Power Management: Along with PoE-in, it includes 1 Gigabit Ethernet port with PoE-out capability, enabling the switch to power downstream devices like access points or cameras through a single cable, reducing installation complexity.
Outdoor-Ready Design: Specifically designed for outdoor use, the rugged enclosure ensures reliable performance in extreme weather conditions, making it ideal for outdoor wireless networks or remote locations.
High-Speed Fiber Connectivity: The inclusion of 2 SFP+ ports offers 10 Gbps fiber connectivity, allowing for faster data transfer rates and high-capacity network backhaul, crucial for handling large amounts of data efficiently.
Cost-Effective Network Solution: With its combination of Gigabit Ethernet ports, Reverse PoE, and high-speed fiber capabilities, this switch delivers excellent value for expanding network infrastructure, whether for remote office setups or outdoor networking environments
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, EAC, ROHS
- Storage size
- 64 MB
- Operating System
- SwitchOS Lite
- Ambient temperature
- -40°C to 70°C
- Ports
- 8 x Gigabit Ethernet ports | 7 x 1G Ethernet ports with Reverse PoE (PoE-in) | 1 x 1G Ethernet ports with PoE-out | 2 x SFP+ ports
Powering
- 2-pin terminal input Voltage
- 12-57 V
- PoE in input Voltage
- 12-57 V
- Max power consumption without attachments
- 7 W
- DC jack input Voltage
- 12-57 V
- Max power consumption
- 29 W
- Number of DC inputs
- 3 (PoE-IN, 2-pin terminal, DC jack)
PoE-out
- Max total out (A)
- 600 mA
- Max out per port output (input 30-57 V)
- 450 mA
- PoE-out ports
- Ether8
- Max out per port output (input 18-30 V)
- 600 mA
Tech Specs
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE out
- Passive PoE
