Key Features

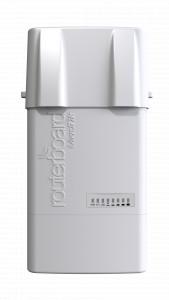

Key features of the RB912UAG-2HPnD router include its AR9342 CPU, 64 MB RAM and 128 MB NAND storage, passive cooling, and RouterOS operating system. It has two DC inputs (PoE-IN and DC jack) and supports passive PoE with an input voltage of 8-30 V. The router also has a MiniSIM modem slot, one MiniPCI-e slot, and one USB type A port with USB power reset capability. The RB912UAG-2HPnD has a wireless 2.4 GHz max data rate of 300 Mbit/s, and its PCB temperature and voltage are monitored. It is certified by FCC and IC regulatory bodies and has an IP00 rating.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- CPU
- AR9342
- CPU core count
- 1
- CPU nominal frequency
- 600 MHz
- Dimensions
- 105x105mm
- RouterOS license
- 4
- Operating System
- RouterOS
- Size of RAM
- 64 MB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 100'000 hours at 25C
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- DC jack input Voltage
- 8-30 V
- Max power consumption
- 13.5 W
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE in input Voltage
- 8-30 V
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Memory Slots
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Wireless 2.4 GHz chip model
- AR9342
- Wireless 2.4 GHz generation
- Wi-Fi 4
- 10/100/1000 Ethernet ports
- 1
- Number of SIM slots
- 1 Modem (Mini SIM)
- MiniPCI-e slots
- 1
- Number of USB ports
- 1
- vPro Support
- Yes
- USB slot type
- USB type A
- Certifications
- FCC, IC
- Max USB current (A)
- 1
- vPro Support
- Yes
- vPro Support
- Yes
- Touchscreen
- Yes
- IP
- IP00
- 1MBit/s
- 30
- 11MBit/s
- 30
- 6MBit/s
- 30
- 54MBit/s
- 27
- MCS0
- 30
- MCS7
- 24
- Ambient temperature
- -40°C to 70°C
