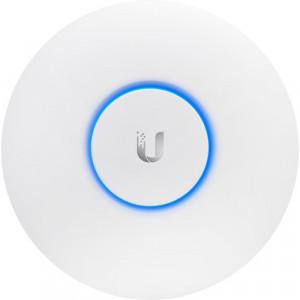

Ubiquiti(UAP-XG-US) Access Point - UniFi UAP XG Dual-radio, 802.11ac Wave 2
Key Features
- 802.11ac Wave 2 Technology: The Ubiquiti UniFi AP XG incorporates advanced 802.11ac Wave 2 technology, providing high-speed wireless connectivity with improved performance and efficiency compared to previous WiFi standards.
- Dual-Radio Configuration: With dual-radio capability, this access point supports simultaneous operation on both the 2.4GHz and 5GHz bands. This allows for increased flexibility in managing network traffic, providing optimal performance for a diverse range of connected devices.
- Multi-User, Multiple Input, Multiple Output (MU-MIMO): MU-MIMO technology enables the access point to communicate with multiple devices simultaneously, optimizing network efficiency and ensuring a smoother user experience in high-density environments.
- High Throughput Rates: The UniFi AP XG delivers high throughput rates, facilitating fast data transfer and low-latency connections. This is particularly beneficial for bandwidth-intensive applications such as HD video streaming, online gaming, and large file downloads.
- 10 Gigabit Ethernet Ports: Equipped with 10 Gigabit Ethernet ports, the access point supports high-speed wired connections, minimizing bottlenecks and ensuring that the network infrastructure can keep up with the demands of modern applications.
- Scalable Management with UniFi Controller: Part of the UniFi ecosystem, the UniFi AP XG can be easily managed through the UniFi Controller software. This centralized management platform allows for streamlined configuration, monitoring, and maintenance of multiple access points in the network.
- Mounting Options:The access point offers versatile mounting options, including ceiling and wall mounts, providing flexibility in deployment to suit different environments and architectural layouts.
- Spectral security: The Unifi Wi-Fi access Point delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, Airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, this device constantly monitors the RF environment to check for both potential malicious activity and the best Channel for network performance.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
genral
- WiFi standards
- 802.11 a/b/g/n/r/k/v/ac/ac-wave2
- Wireless Security
- WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF
- BSSID
- Up to 8 per radio
- Mounting
- Wall/Ceiling/Junction Box (Kits Included)
- Concurrent clients
- 1500
- Data Rate
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
- Data Rate
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
- Data Rate
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Data Rate
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Data Rate
- 802.11b: 1, 2, 5.5, 11 Mbps
- Radios
- 2.4 GHz | 5 GHz
- Network Interface
- 1 x 10/100/1000 Ethernet Port | 1 x 1/10 Gbps ICM Ethernet Port
Tech Specs
- Certifications
- CE, FCC, IC
- Dimensions
- 228 x 228 x 50 mm (8.98 x 8.98 x 1.97")
- Weight
- 1.2 kg (2.7 lb)
- Power method
- 802.3bt PoE
- Power Supply
- PoE Injector 50VDC, 1.2A Gigabit
- Max power consumption
- 31W
- DC Input Power
- 44 to 57VDC
- Button
- Factory reset
- LED Indicator
- R/G/B
- Operating Temperature
- -10 to 60° C (14 to 140° F)
- Operating Humidity
- 5 to 95% noncondensing
- Brand
- Ubiquiti Network
