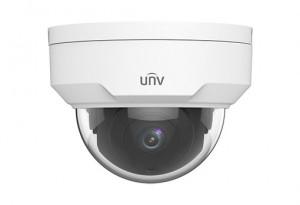

UNV Fixed IR Dome Camera - 4MP (2560 x 1440), 1/3.0" CMOS Sensor, Fixed 2.8 mm 4.0 mm Lens, Waterproof Outdoor, PoE Connect power
Key Features
- High-Resolution 4MP Clarity: Delivers clear, detailed 4MP (2560 x 1440) video, ideal for accurate security monitoring.
- Advanced Night Vision with Smart IR: Equipped with Smart IR, offering up to 30m (98ft) night vision range for reliable surveillance in complete darkness.
- Durable Outdoor Build: With IP67 waterproof and IK10 vandal-resistant ratings, this camera withstands harsh weather and vandalism, ensuring longevity.
- Efficient Video Compression: Supports Ultra 265, H.265, and H.264 formats, reducing bandwidth and storage needs without compromising quality.
- Flexible Power Options: PoE and DC12V power compatibility simplify installation, making it versatile for various setups.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- Sensor
- 1/3.0"CMOS
- Resolution
- 4MP (2560 x 1440)
- Lens
- Fixed 2.8 mm 4.0 mm
- Basic Event
- Basic Detection (Motion Detection) | General Function (Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication)
- View Angle
- 2.8 mm (H - 97.0° | V -52.2° | D - 107.5°) - 4.0 mm (H 79.0° | V - 42.3° | D - 85.1°)
- Record Audio
- non
- Night Vision Range
- 30m IR-cut filter with auto switch (ICR)
Tech Specs
- Min Illumination
- Colour 0.01 lux (F2.1, AGC ON) 0 lux with IR on
- Shutter Time
- Auto/Manual, 1 ~ 1/100000s
- Angle Adjustment
- Pan (3° to 360°) | Tilt (0° to 68°)
- Wide Dynamic Range
- DWDR
- DORI
- 2.8mm (D - 63.0m(206.7ft) | O - 25.2m(82.7ft) | R - 12.6m(41.3ft) | I - 6.3m(20.7ft)) - 4.0mm (D - 90.0m(295.3ft) | O - 36.0m(118.1ft) | R - 18.0m(59.1ft) | I - 9.0m(29.5ft))
- Wavelength
- 850 nm
- Video Compression
- Ultra 265, H 265, H 264
- Max Frame Rate
- Main Stream (4MP (2560 x 1440), Max 25fps | 3MP(2304 x 1296), Max 25fps | 2MP(1920 x 1080),Max 30fps) - Sub Stream ( D1 (720 x 576), Max 30fps | 640 x 360,Max 30fps | 2CIF(704 x 288), Max 30fps | CIF(352 x 288), Max 30fps)
- Video Bit Rate
- 128 Kbps~6144 Kbps
- White Balance
- Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Flip
- Normal, Flip Vertical, Flip Horizontal, 180°
- Support
- BLC | HLC
- Ports
- 1 x RJ45 10M/100M Base-TX Ethernet
Powering
- Power method
- DC 12V±25%, PoE (IEEE 802.3af)
