UNV Fixed IR Mini Bullet Camera - 5MP (2592 x 1944), 1/3.0"CMOS Sensor, IPC2125LB-SF28-A:2.8mm, IPC2125LB-SF40-A:4.0mm, Outdoor, PoE Connect power
Key Features
- Superior 5MP Resolution: Captures ultra-clear video at 2592 x 1944 resolution, ensuring critical details are preserved for accurate monitoring.
- Wide Dynamic Range with IR-Cut: IR-cut filter and Smart IR technology provide an impressive 30m (98ft) night vision range, automatically adjusting to low light.
- Robust Compression Standards: Supports Ultra 265, H.265, H.264, and MJPEG formats, reducing storage and bandwidth needs without compromising quality.
- All-Weather Durability: Built with IP67-rated protection, it withstands rain, dust, and extreme weather, making it ideal for year-round outdoor use.
- Seamless Power Integration: Dual power options with PoE (Power over Ethernet) and DC12V simplify installation and reduce cabling requirements for a streamlined setup.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Sensor
- 1/3.0"CMOS
- Night Vision Range
- 30 m IR-cut filter with auto switch (ICR)
- Record Audio
- non
- Resolution
- 5MP (2592 x 1944)
- Lens
- IPC2125LB-SF28-A:2.8mm | IPC2125LB-SF40-A:4.0mm
- Basic Event
- Motion detection, Watermark, IP, Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
- View Angle
- H (IPC2125LB-SF28-A:97.0°, IPC2125LB-SF40-A:79.0°) | V (IPC2125LB-SF28-A:52.2°, IPC2125LB-SF40-A:42.3°) | D (IPC2125LB-SF28-A:107.5°, IPC2125LB-SF40-A:85.1°)
Tech Specs
- Angle Adjustment
- Pan (0° to 360°) | tilt (0° to 90°) | rotate (0° to 360°)
- Shutter Time
- Auto/Manual, 1 ~ 1/100000s
- Min Illumination
- Colour 0.01 lux (F2.1, AGC ON) 0 lux with IR on
- Video Bit Rate
- 128 Kbps~6144 Kbps
- White Balance
- Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Support
- BLC | HLC
- DORI
- D (IPC2125LB-SF28-A:63.0m(206.7ft), IPC2125LB-SF40-A:90.0m(295.3ft)) | O (IPC2125LB-SF28-A:25.2m(82.7ft), IPC2125LB-SF40-A:36.0m(118.1ft)) | R (IPC2125LB-SF28-A:12.6m(41.3ft), IPC2125LB-SF40-A:18.0m(59.1ft)) | I (IPC2125LB-SF28-A:6.3m(20.7ft), IPC2125LB-SF40-A:9.0m(29.5ft))
- Video Compression
- Ultra 265 | H.265 | H.264 | MJPEG
- Max Frame Rate
- Main Stream (5MP (2592*1944) , Max 20fps; 4MP (2560*1440), Max 20fps; 3MP(2304*1296), Max 20fps;2MP(1920*1080),Max 30fps) | Sub Stream (D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps)
- Ports
- 1 x RJ45 10M/100M Base-TX Ethernet
Powering
- Power method
- DC 12V±25%, PoE (IEEE 802.3af)
- Max power consumption
- 5 Watts
| Products |
|---|
| Choose your plan |
- 10 Gbps
- Yes
- Desktop | Wall Mountable | Rack-mountable
- 50 m IR cut filter
- 2MP (1920 x 1080)
- 1/2.7" Progressive Scan CMOS
- 0.1 | 0.3 | 1 | 2 | 3 | 5 | 8 m (0.3 | 1 | 3.3 | 6.6 | 9.9 | 16.4 | 26.3 ft)
- White | Blue | Black
- RJ45 to RJ45
- 1/2.4" Progressive Scan CMOS
- 6MP (3200 × 1800)
- 30 m IR cut filter
- 5MP (2560 × 1920)
- 30 m IR cut filter
- 1/2.7" Progressive Scan CMOS
- Fixed focal lens, 2.8 and 4 mm optional
- Built-in Microphone
- 1/1.8" Progressive Scan CMOS
Brand New
Brand New
Fortinet FortiGate FG-81F-POE NGFW Manageable Firewall - 10 Gbps Firewall Throughput, TLS 1.3, SSL, SHA-256, AES (256-bit), 200 VPN, 10 x RJ45 Ports, 2 x Expansion Slots
(0.0)
Brand New
HIKVision Varifocal Bullet Camera - 2MP (1920 × 1080), 1/2.7" Progressive Scan CMOS Sensor, 2.8 to 12 mm Lens, Water and Dust Resistant, PoE Connect power
(0.0)
Brand New
Ubiquiti UniFi Cat6 Ethernet Patch Cable (U-Cable-Patch-RJ45) Network Accessories - 2 x Bendable booted RJ45
(0.0)
Brand New
Hikvision AcuSense Vandal Fixed Dome Camera - 6MP (3200 × 1800), 1/2.4" Progressive Scan CMOS, 2.8 and 4 mm optional Lens, PoE Connect power, Water and Dust Resistant, Audio and alarm
(0.0)
Brand New

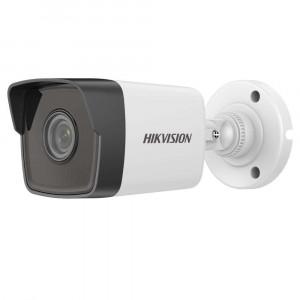

Hikvision Fixed Bullet Camera - 5MP (2560 × 1920), 1/2.7" Progressive Scan CMOS, Fixed focal lens 2.8 mm and 4 mm, Water and Dust Resistant, PoE Connect power, Built-in microphone
