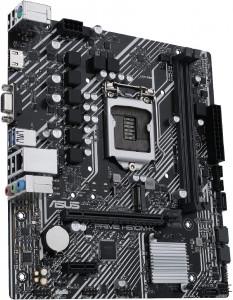

ASUS PRIME H510M-K Motherboard - Intel Socket LGA1200, H470, 2 x DIMM, VGA, HDMI,1 x M.2 slot, 128 Mb Flash ROM
Express Shipping
out of 5 stars
Key Features
- LGA1200 Compatibility: The ASUS PRIME H510M-K Motherboard is designed for Intel processors, featuring an LGA1200 socket for excellent compatibility with a wide range of CPUs.
- Sturdy H470 Chipset: Built on the H470 chipset, this motherboard delivers a stable and reliable foundation for your system, ensuring smooth performance and efficient data handling.
- Flexible Display Options: With VGA and HDMI ports, the motherboard provides flexibility in display connectivity, accommodating various monitor setups for both work and entertainment purposes.
Rapid Storage with M.2 Slot: The motherboard comes with a dedicated M.2 slot, allowing you to install high-speed NVMe SSDs for swift data access and improved system responsiveness.
- Flash ROM for Easy Updates: Featuring a 128 MB Flash ROM, the motherboard supports hassle-free BIOS updates, ensuring that your system stays current with the latest enhancements and optimizations.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Chipset
- Intel® H470
- Accessories | Documentation
- 1 x User guide
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Ethernet
- 1 x Realtek 1Gb Ethernet
- Back Panel I/O Ports
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Accessories | Cables
- 2 x SATA 6Gb/s cables
- Audio Features
- Audio Shielding | Premium audio capacitors | Dedicated audio PCB layers | A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Internal I/O Connectors | Power
- 1 x 24-pin Main Power connector | 1 x 8-pin +12V Power connector
- Internal I/O Connectors | Storage
- 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
- CPU
- Intel Socket LGA1200 for 11th Gen & 10th Gen Intel Core Processors
- Expansion Slots Intel 11th & 10th Gen
- 1 x PCIe 4.0/3.0 x16 slot| Intel 11th Gen processors support PCIe 4.0 x16 | Intel 10th Gen processors support PCIe 3.0 x16
- Expansion Slots | Intel H470 Chipset
- 1 x PCIe 3.0 x1 slot
- Ports
- 1 x DisplayPort | 1 x HDMI port
- Rear USB
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) | 2 x USB 2.0 ports (2 x Type-A)
- Front USB
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Memory (RAM)
- 2 x DIMM, Max. 64GB, DDR4 3200
- Storage
- 1 x M.2 slot and 4 x SATA 6Gb/s
- Operating System (OS)
- Windows 10 Home
- Form Factor
- 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
