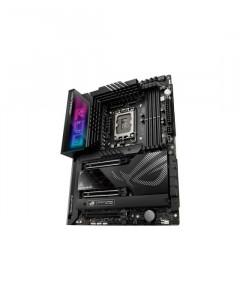

ASUS ROG MAXIMUS Z790 HERO Motherboard - Intel Socket LGA1700, 4 x DIMM, 5 x M.2 slots, HDMI, 256 Mb Flash ROM
$ 710.00
Key Features
- LGA1700 Compatibility: The ASUS ROG MAXIMUS Z790 HERO Motherboard is engineered to support Intel processors with the LGA1700 socket, providing a solid foundation for high-performance computing, gaming, and content creation.
- Enhanced Memory Configuration: Featuring four DIMM slots, this motherboard supports DDR4 memory, allowing users to maximize system performance with higher RAM capacities and faster memory speeds.
- Comprehensive M.2 Storage: With five M.2 slots, the motherboard offers extensive support for ultra-fast NVMe SSDs, enabling users to create a high-speed storage solution for quicker system responsiveness and faster data transfers.
- HDMI Connectivity: Equipped with an HDMI port, the motherboard ensures convenient connectivity for high-quality visuals. This feature is essential for users looking to connect their systems to monitors, TVs, or other HDMI-enabled devices.
- Ample Flash ROM Storage: Boasting a spacious 256 MB Flash ROM, the motherboard provides ample storage for the BIOS. This generous capacity ensures a seamless and secure firmware update process, keeping your system optimized and up to date.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- Memory (RAM)
- Windows® 11, Windows® 10 64-bit
- Memory (RAM)
- 4 x DIMM, Max. 192GB, DDR5 7800
- Storage
- 5 x M.2 slots and 6 x SATA 6Gb/s
- Graphic (GPU)
- 1 x HDMITM port
- Manageability
- WOL by PME, PXE
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Chipset
- Intel® Z790
- CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors
- Front USB
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Ethernet
- 1 x Intel® 2.5Gb Ethernet
- Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen)*
- Intel® CoreTM Processors (14th & 13th & 12th Gen)*
- Expansion Slots | Intel® Z790 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
- Wireless & Bluetooth
- Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3
- Rear USB
- 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- Front USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Back Panel I/O Ports
- 2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
- Internal I/O Connectors | Fan and Cooling
- 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header
- Internal I/O Connectors | Power related
- 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector
- Internal I/O Connectors | Storage
- 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports
- Internal I/O Connectors | Miscellaneous
- 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x ReTry button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x CPU Over Voltage jumper 1 x Alternative PCIe Mode switch
- Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
