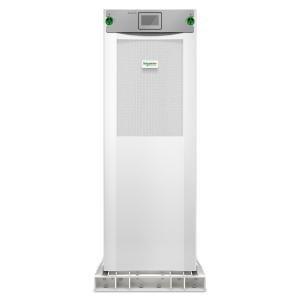

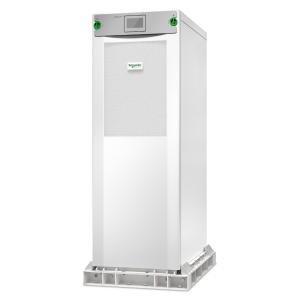

APC GALAXY VS Uninterruptible Power Supply UPS - 384-480VDC External battery system Li-Ion (Lithium Ion) VRLA, 208 V 3 phase, Schneider Electric, 5kVA
$ 22000.00
Key Features
High-Efficiency Backup Power – Equipped with a 384–480VDC external Li-Ion (Lithium-Ion) and VRLA battery system, it ensures reliable and long-lasting backup power for critical applications.
-
208 V 3-Phase Output – Provides stable three-phase 208V power delivery, making it ideal for offices, data centers, and enterprise network infrastructures.
-
Comprehensive Power Protection – Safeguards sensitive devices from surges, spikes, and electrical disturbances, ensuring stable and uninterrupted operations.
-
Advanced Power Management – Designed to optimize network power for routers, switches, and access points, with intelligent monitoring and conditioning for maximum efficiency.
-
Enterprise-Grade Reliability – Built under Schneider Electric’s trusted standards, offering scalable, safe, and durable UPS performance for both home and office environments.
Package Dimensions
Width: 39.00 in
Height: 66.10 in
Length: 25.20 in
Weight: 275.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Battery Type
- Internal modular battery VRLA
- Maximum Configurable Power in VA
- 50 kVA
- Main Output Voltage
- 208 V 3 phase
- Main Input Voltage
- 208 V 3 phase
- Battery Voltage
- 384-480VDC
- Battery Voltage
- 480V
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- End of Discharge Battery Voltage
- 307 V DC
- Color
- White
Tech Specs
- Provided Equipment
- Dust filter Installation guide Integrated network management Power modules ship installed Start-Up Service Top and bottom cable entry
- Presentation
- Highly efficient, easy-to-deploy 50kW, 208V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
- Other Output Voltages
- 200 V 220 V
- Weight
- 250 kg
- Input Total Harmonic Distortion
- Less than 3% for full load
- Efficiency at full load
- 177...239 V 208 V
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Harmonic distortion
- Less than 3%
- Input Power Factor at Full Load
- 0.99
- Input Frequency
- 40 - 70 Hz
- Lead time
- Usually Ships within 2 Weeks
- Waveform Type
- Sine wave
- Crest factor
- 2.5
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output voltage tolerance
- +/-1% after 50ms
- Output Voltage THD
- < 1% linear load and < 3% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- CSA C22.2 No 107.3 FCC Part 15 class A IEC 62040-3 IEC 60721-4-2 Level 2M2 UL 1778 5th edition
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3281 ft
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Storage altitude
- 0…50000 ft (0…15240 m)
- Acoustic level
- 65 dBA
- Heat dissipation
- 10758.4 Btu/h
- Control panel
- Touch Screen LCD User Interface
