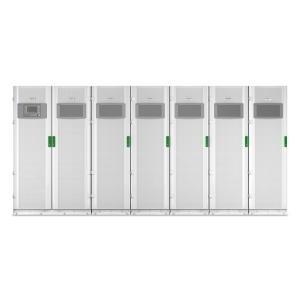

APC GALAXY VS Uninterruptible Power Supply UPS - 384-576VDC External battery system Li-Ion (Lithium Ion) VRLA, 400 V 3 phase, Schneider Electric
$ 19000.00
Key Features
High-Performance Backup Power – Provides reliable and stable uninterruptible power supply for offices, enterprises, and critical systems during outages.
-
External Li-Ion VRLA Battery System – Supports scalable 384–576VDC lithium-ion batteries for extended runtime, efficiency, and long operational life.
-
400V 3-Phase Output – Ensures consistent three-phase power delivery ideal for industrial, commercial, and IT infrastructure applications.
-
Comprehensive Protection & Safety – Delivers surge protection, power conditioning, and electrical safety to safeguard sensitive equipment.
-
Smart Power Management by Schneider Electric – Enables advanced monitoring, remote network management, and optimized energy usage for mission-critical operations.
Package Dimensions
Width: 39.00 in
Height: 66.10 in
Length: 25.20 in
Weight: 250.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Output Voltage THD
- < 1% linear load and < 5% non-linear load
- Maximum Configurable Power in VA
- 40 kVA
- Main Input Voltage
- 400 V 3 phase
- Main Output Voltage
- 400 V 3 phase
- Output voltage tolerance
- +/-1% after 50ms
- Battery Voltage
- 384-480VDC
- Product or Component Type
- Uninterruptible power supply (UPS)
- End of Discharge Battery Voltage
- 307 V DC
- Color
- White
Tech Specs
- Bypass type
- +/- 10 %
- Presentation
- Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Provided Equipment
- Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Lead time
- Usually Ships within 2 Weeks
- Main Input Voltage
- 380 V 415 V
- Weight
- 250 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency
- 340...460 V 400 V
- Maximum Input Current per Phase
- 72 A
- Maximum Short Circuit Withstand (Icw)
- 65 kA
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Max Configurable Power (Watts)
- 40 kW
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Output voltage tolerance
- +/-1% after 50ms
- Output Voltage THD
- < 1% linear load and < 5% non-linear load
- Bypass type
- Built-in Static Bypass
- Maximum Configurable Power in VA
- 40 kVA
- Standards
- EN/IEC 62040-1 EN/IEC 62040-2 FCC Part 15 class A IEC 60721-4-2 Level 2M2 UL 1778 5th edition
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Acoustic level
- 68 dBA
- Heat dissipation
- 4333 Btu/h
- IP degree of protection
- IP21
- Control panel
- Touch Screen LCD User Interface
