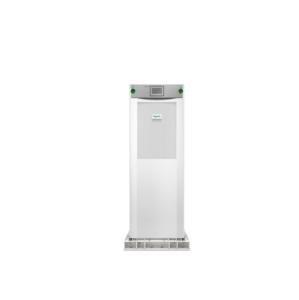

APC GALAXY VS Uninterruptible Power Supply UPS - 480...576 V DC External battery system Li-Ion (Lithium-Ion)VRLA, 400 V 3 phases, Schneider Electric
$ 20000.00
Key Features
High-Efficiency Backup Power – Supports 480…576VDC external Li-Ion and VRLA battery systems for reliable and long-duration energy storage.
-
400 V 3-Phase Output – Delivers stable and efficient power distribution for business-critical and industrial applications.
-
Comprehensive Protection – Shields sensitive equipment from outages, surges, and power fluctuations to ensure operational continuity.
-
Versatile Power Management – Perfect for IT networks, data centers, routers, switches, and office infrastructure with advanced monitoring options.
-
Enterprise-Grade Design – Engineered by Schneider Electric with superior safety, scalability, and energy efficiency for mission-critical environments.
Package Dimensions
Width: 39.00 in
Height: 66.10 in
Length: 25.20 in
Weight: 250.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Battery Voltage
- 480...576 V DC
- Maximum Configurable Power in VA
- 50 kVA
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Output voltage tolerance
- +/-1% after 50ms
- Main Input Voltage
- 400 V 3 phase
- Main Output Voltage
- 400 V 3 phase
- Battery Type
- External battery system Li-Ion (Lithium Ion) VRLA
- Color
- White
Tech Specs
- Presentation
- Highly efficient, easy-to-deploy 50kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
- Lead time
- Usually Ships within 2 Weeks
- Provided Equipment
- Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-Up Service
- Dimensions
- L (33.3 in) x W (20.5 in) x H (58.5 in)
- Weight
- 250 kg
- Input Frequency
- 40 - 70 Hz
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Transfer Time
- +/-1% after 50ms
- Output Voltage THD
- < 1% linear load and < 5% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Standards
- EN/IEC 62040-1 EN/IEC 62040-2 FCC Part 15 class A IEC 60721-4-2 Level 2M2 UL 1778 5th edition
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Ambient Air Temperature for Storage
- -13…131 °F (-25…55 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Acoustic level
- 68 dBA
- Heat dissipation
- 5804 Btu/h
- IP degree of protection
- IP21
- Control panel
- Touch Screen LCD User Interface
| Products |
|---|
| Choose your plan |
- Tilt
- 300 nits
- 1ms MPRT
- Tilt
- 250 nits
- 16:9
- 60-sheets (80g/m²)
- Error Diffusion/ Advanced Text Enhancement
- Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
- 300,000 Pages
- Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, coloured, rough, heavy rough), monochrome transparency, labels, envelope, heavy envelope
- HP 147A Black Original LaserJet Toner Cartridge (10,500 pages) W1470A; HP 147X High Yield Black Original LaserJet Toner Cartridge (25,200 pages) W1470X; HP 147Y Extra High Yield Black Original LaserJet Toner Cartridge (42,000 pages) W1470Y
- 1000 nits
- 21:9
- Monitor
- Black
- 650 VA
- 0° to 40°C
- 400 V 3 phase
- 400 V 3 phase
- 0 VAh runtime
- External battery system
- 480V
- 384 V DC
Brand New
VIEWSONIC VX3219-PC-MHD Gaming Monitor - 32" FHD (1920 x 1080), VA, Tilt, HDMI, DP, 300nits, 240Hz
(0.0)
Brand New
HP P22 G5 Monitor - 22" FHD (1920 x 1080), IPS, Tilt, HDMI, DP, VGA, 250 nits, 75Hz
(0.0)
$80 $100
Brand New
CANON IMAGEFORMULA DR-C230 Desktop Type Sheet Fed Scanner - RGB LED, 600dpi, 30ppm/60ipm, 4500 Scans
(0.0)
$360 $500
Brand New
HP LASERJET ENTERPRISE M612DN Printer - A4, Print, 71 ppm, 1200 x 1200 dpi Resolution, 300,000 Pages Duty Cycle
(0.0)
$410 $450
Brand New
MSI MEG 342C Gaming Curved Monitor - 34" UWQHD (3440 x 1440), QD, HDMI, DP, 1000 nits, 175 Hz
(0.0)
$1170 $1250
Brand New
APC EASY BV650i-MS UPS - 650VA, 12V Lead-Acid Battery, 230V Output Voltage, 8 Hours Recharge Time
(0.0)
$80 $85
Brand New

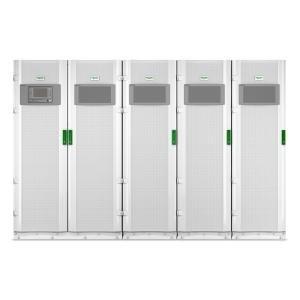

APC GALAXY VX Uninterruptible Power Supply UPS - 480V External battery system, 400 V 3 phase, Schneider Electric, 137523 Btu/h
