APC GALAXY VX Uninterruptible Power Supply UPS - 480V External battery system, 400 V 3 phase, Schneider Electric, 137523 Btu/h
Key Features
High Power Capacity and Heat Management – Designed to handle demanding workloads, this UPS provides reliable support for critical systems with a heat dissipation of 137,523 Btu/h, ensuring optimal performance even under high-load conditions while maintaining system stability.
-
Robust 480V External Battery System – Features a modular Li-Ion battery setup, allowing extended runtime, easy maintenance, and flexible configuration to meet the energy requirements of large data centers, industrial operations, and commercial facilities.
-
Stable 400 V 3-Phase Output – Delivers balanced, high-quality three-phase power to connected equipment, protecting sensitive devices from voltage fluctuations, ensuring operational efficiency, and supporting large-scale IT and office infrastructure.
-
Advanced Power Protection and Conditioning – Equipped with surge protection, voltage regulation, and power conditioning, this UPS safeguards critical equipment from unexpected outages, spikes, and power disturbances, helping extend equipment lifespan and reduce downtime.
-
Comprehensive Power and Energy Management – Integrated with Schneider Electric monitoring and network management tools, the UPS allows real-time diagnostics, remote monitoring, and intelligent energy management, enabling optimized power distribution and enhanced operational efficiency across multiple systems.
Package Dimensions
Specifications
Q&A
Warranty
wholesale buying guide
General
- Main Output Voltage
- 400 V 3 phase
- Main Input Voltage
- 400 V 3 phase
- Battery power in VAH
- 0 VAh runtime
- Product or Component Type
- Uninterruptible power supply (UPS)
- End of Discharge Battery Voltage
- 384 V DC
- Battery Voltage
- 480V
- Battery Type
- External battery system
- Maximum Configurable Power in VA
- 1250 kVA
- Color
- White
Tech Specs
- Presentation
- A highly efficient, modular, 750 kVA scalable to 1250 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure connected UPS features up to 99% efficiency in eConversion mode. Includes 5x8 start-up service.
- Lead time
- Special Order - Call for Quoted Lead Times
- Other Input Voltage
- 380 V 415 V 440 V
- Other Output Voltages
- 380 V 415 V 440 V
- Provided Equipment
- Installation guide Start-Up Service
- Input Frequency
- 40 - 70 Hz
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Crest factor
- 3 with THC <5%
- Waveform Type
- Sine wave
- Output Voltage THD
- < 2% linear load and < 3% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Operating Temprature
- 0 - 40 °C
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3333 ft
- Ambient Air Temperature for Storage
- -15…40 °C
- Storage
- 0…15240 m
- Acoustic level
- 69.5 dBA
- Heat dissipation
- 137523 Btu/h
- IP degree of protection
- IP20
- Control panel
- 7" touch screen display
| Products |
|---|
| Choose your plan |
- Non-Touch
- Black
- OLED
- 300 nits
- Height, Tilt
- 16:9
- 100 sheets
- A4, A5, A6, B5, LTR, LGL, Executive (184.2 mm x 266.7 mm), Legal(215 mm x 345 mm), 4" x 6", 5" x 7", 7" x 10", 8" x 10", Envelopes DL, Envelopes COM10, Envelopes C5, Square (89 mm x 89 mm), Square (127 mm x 127 mm), Card Size(91 mm x 55 mm)
- All in One Inkjet Printer
- Tilt
- 250 nits
- 100 Hz
- External battery system
- 480V
- 384 V DC
- 80 kVA
- < 1% linear load and < 3% non-linear load
- Uninterruptible power supply (UPS)
- Internal modular battery VRLA
- 50 kVA
- 208 V 3 phase
- 60 kVA
- Internal modular battery VRLA
- 480V
LG 32GS95UE-B UltraGear OLED Gaming Monitor - 32" UHD (3840 x 2160), HAS, Pivot, OLED, HDMI, DP, 275 nits, 240Hz

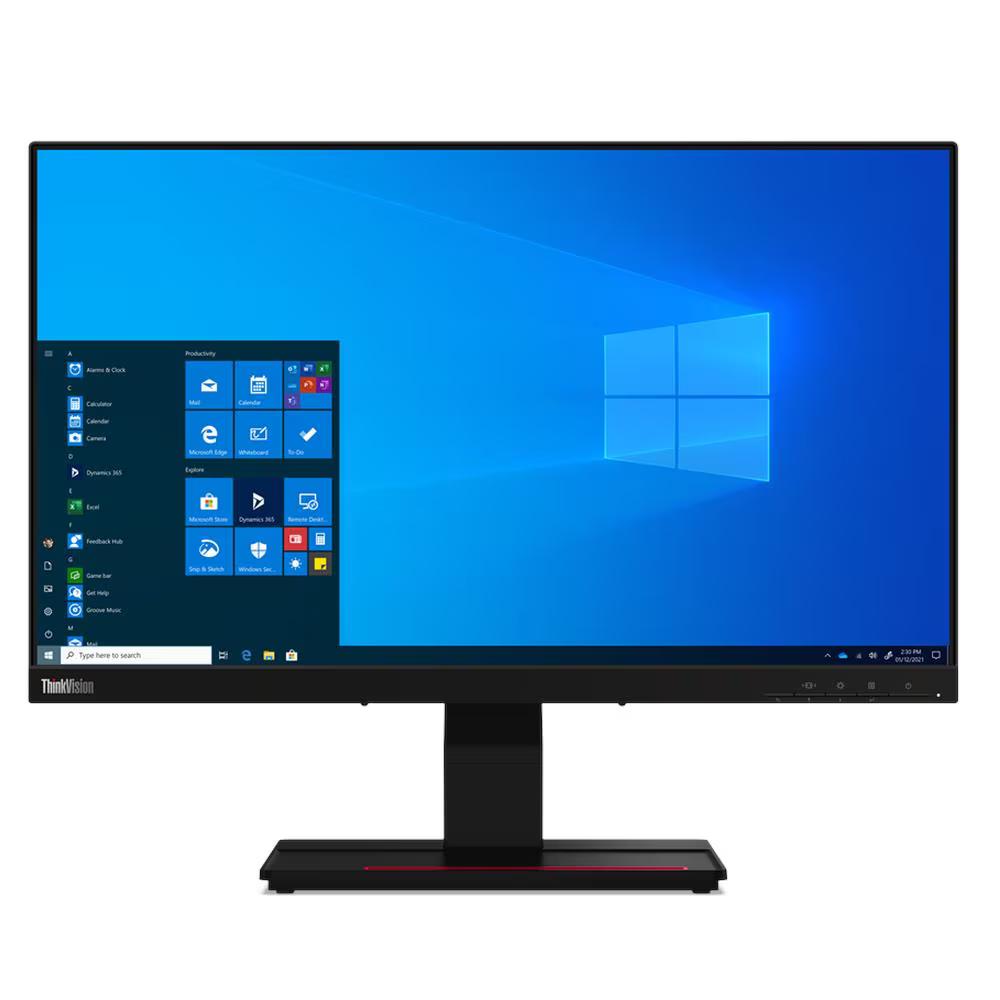

LENOVO THINKVISION T24T-20 Monitor - 24" FHD (1920 x 1080), IPS, Tilt, Height, HDMI, DP, USB-C, 300nits, 60Hz, Multi Touch
