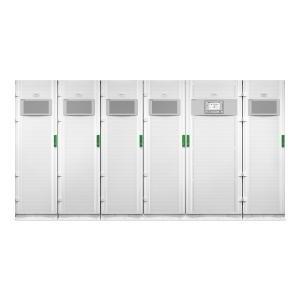

APC GALAXY VS Uninterruptible Power Supply UPS - 480V Internal modular battery VRLA, 480 V 3 phase, Schneider Electric, 217 A
Key Features
High-Power Capacity for Critical Loads – With a robust 217 A output at 480 V 3-phase, this UPS delivers reliable backup power to support large-scale infrastructures, ensuring continuous operation of essential equipment in data centers, enterprises, and industrial environments.
-
Internal Modular VRLA Battery Architecture – Features a scalable, modular VRLA battery system that allows flexible runtime extension, streamlined maintenance, and simplified battery replacement to minimize downtime and maximize operational efficiency.
-
Comprehensive Power Protection & Conditioning – Provides clean, stable, and regulated power output with built-in surge protection, voltage regulation, and harmonic conditioning, shielding sensitive devices from power fluctuations, outages, and electrical disturbances.
-
Advanced Monitoring & Intelligent Management – Equipped with Schneider Electric’s smart power management tools, the UPS enables remote monitoring, real-time diagnostics, and predictive maintenance to improve uptime and ensure proactive system control.
-
Secure and Versatile Backup Solution – Engineered for home networks, office setups, and mission-critical applications, it enhances electrical safety, guarantees emergency backup, and delivers consistent power stability for switches, routers, and servers.
Package Dimensions
Specifications
Q&A
Warranty
wholesale buying guide
General
- Maximum Configurable Power in VA
- 80 kVA
- Battery Type
- Internal modular battery VRLA
- Battery Voltage
- 480V
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- Output voltage tolerance
- +/-1% after 50ms
- Main Output Voltage
- 480 V 3 phase
- Main Input Voltage
- 480 V 3 phase
- Color
- White
Tech Specs
- Presentation
- Highly efficient, easy-to-deploy 80kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 3 smart modular high capacity battery strings, expandable to 5 strings for extended runtime. See the battery runtime chart for details.
- Lead time
- Usually Ships within 2 Weeks
- Provided Equipment
- Dust filter Installation manual Integrated network management Battery modules ship installed Start-Up Service EcoStruxure Ready
- Dimensions
- L (33.3 in) x W (21.7 in) x H (77.6 in)
- Weight
- 680 kg
- Input Frequency
- 40 - 70 Hz
- Efficiency at full load
- 408...552 V 480 V
- Maximum Input Current per Phase
- 119 A
- Maximum Short Circuit Withstand (Icw)
- 65 kA
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Input Power Factor at Full Load
- 0.99
- Max Configurable Power (Watts)
- 80 kW
- Harmonic distortion
- Less than 3%
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains
- Crest factor
- 2.5
- Waveform Type
- Sine wave
- Output voltage tolerance
- +/-1% after 50ms
- Output Voltage THD
- < 1% linear load and < 3% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Maximum Configurable Power in VA
- 80 kVA
- Standards
- CSA C22.2 No 107.3 FCC Part 15 class A IEC 62040-1-1 IEC 62040-2 IEC 62040-3 UL 1778 5th edition OSHPD
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3300 ft
- Ambient Air Temperature for Storage
- 5…104 °F (-15…40 °C)
- Storage Relative Humidity
- 10…80 % non-condensing
- Storage altitude
- 0…10000 ft (0…3048 m)
- Acoustic level
- 65 dBA
- Heat dissipation
- 8334 Btu/h
- IP degree of protection
- IP20
- Control panel
- Touch Screen LCD User Interface
