APC GALAXY VX Uninterruptible Power Supply UPS - 480V External battery system, 400 V 3 phase, Schneider Electric, 1500 kVA
$ 125500.00
Key Features
High-Capacity 1500 kVA Output – Delivers reliable 400 V 3-phase power for large-scale industrial facilities, data centers, and mission-critical operations, ensuring continuous performance under heavy load.
-
External Battery System – Features advanced Li-Ion and VRLA batteries for scalable backup runtime, modular design, and easy maintenance during extended power outages.
-
Comprehensive Power Protection – Provides surge protection, voltage stabilization, and power conditioning to safeguard sensitive equipment, IT infrastructure, and industrial machinery.
-
Intelligent Power Management – Integrated network monitoring, remote management, and real-time diagnostics for predictive maintenance, efficient control, and optimized uptime.
-
Enhanced Safety and Reliability – Built with robust electrical safety features, system redundancy, and emergency support to ensure stable, uninterrupted power for critical operations.
Package Dimensions
Width: 41.70 in
Height: 84.60 in
Length: 203.10 in
Weight: 3737.00 kg
Specifications
Q&A
Warranty
wholesale buying guide
General
- Battery Type
- External battery system
- Battery Voltage
- 480V
- End of Discharge Battery Voltage
- 384 V DC
- Product or Component Type
- Uninterruptible power supply (UPS)
- Battery power in VAH
- 0 VAh runtime
- Main Input Voltage
- 400 V 3 phase
- Main Output Voltage
- 400 V 3 phase
- Maximum Configurable Power in VA
- 1500 kVA
- Color
- White
Tech Specs
- Presentation
- A highly efficient, modular, 500 kVA scalable to 1500 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure connected UPS features up to 99% efficiency in eConversion mode. Includes 5x8 start-up service.
- Lead time
- Special Order - Call for Quoted Lead Times
- Other Input Voltage
- 380 V 415 V 440 V
- Other Output Voltages
- 380 V 415 V 440 V
- Provided Equipment
- Installation guide Start-Up Service
- Dimensions
- L (35.4 in) x W (126 in) x H (77.6 in)
- Weight
- 1956 kg
- Input Frequency
- 40 - 70 Hz
- Input Total Harmonic Distortion
- Less than 3% for full load
- Load power factor
- From 0.7 leading to 0.7 lagging without any derating
- Output Frequency
- 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal not synced 60 Hz +/- 0.1 % for 60 Hz nominal not synced
- Crest factor
- 3 with THC <5%
- Waveform Type
- Sine wave
- Output Voltage THD
- < 2% linear load and < 3% non-linear load
- Overload Operation
- 10 minutes @ 125% and 60 seconds @ 150%
- Ambient Air Temperature for Operation
- 32…104 °F (0…40 °C)
- Relative Humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3333 ft
- Ambient Air Temperature for Storage
- 5…104 °F (-15…40 °C)
- Storage altitude
- 0…50000 ft (0…15240 m)
- Acoustic level
- 69.5 dBA
- Heat dissipation
- 82260 Btu/h
- IP degree of protection
- IP20
- Control panel
- 7" touch screen display
| Products |
|---|
| Choose your plan |
- 100 kVA
- 384 V DC
- Uninterruptible power supply (UPS)
- Non-Touch
- Black
- 27” FHD (1920 x 1080)
- Non-Touch
- Black
- 240 Hz
- Tilt
- 5 ms (GtG)
- 250 nits
- HP 936 Black Original Ink Cartridge (~1,250 pages) 4S6V2LN, HP 936 Cyan Original Ink Cartridge (~800 pages) 4S6U9LN; HP 936 Magenta Original Ink Cartridge (~800 pages) 4S6V0LN; HP 936 Yellow Original Ink Cartridge (~800 pages) 4S6V1LN. HP EvoMore planned to be available April 2024: HP 936e EvoMore Black Original Ink Cartridge (~2,500 pages) 4S6V6LN; HP 936e EvoMore Cyan Original Ink Cartridge (~1,650 pages) 4S6V3LN; HP 936e EvoMore Magenta Original Ink Cartridge (~1,650 pages) 4S6V4LN; HP 936e EvoMore Yellow Original Ink Cartridge (~1,650 pages) 4S6V5LN. Actual yield varies considerably based on content of printed pages and other factors. For details
- A4; A5; A6; B5 (JIS); Envelope (DL, C5, C6, Chou #3, Chou #4); Card (Hagaki); A3
- 4 (1 each black, cyan, magenta, yellow)
- 50 kVA
- 480V
- 384 V DC
- Black
- 0° to 40°C
- 10000VA
- 100 kVA
- 384 V DC
- Uninterruptible power supply (UPS)
Brand New
APC GALAXY VS Uninterruptible Power Supply UPS - 480-576VDC External battery system Li-Ion (Lithium Ion) VRLA, 400 V 3 phase, Schneider Electric, 100 kVA
(0.0)
$26500 $28000
Brand New

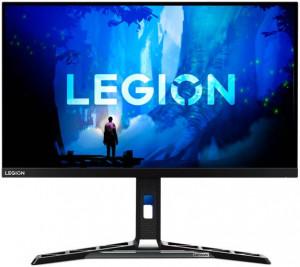

LENOVO LEGION Y27F-30 Gaming Monitor - 27" FHD (1920 x 1080), IPS, HDMI, DP, USB, 400 nits, 280 Hz
