Cisco Catalyst 9200 Switch - 56 Gbps Switching Bandwidth, 83.33 Mpps Throughput, 24 x PoE+ RJ45 Ports, 4 x SFP (uplink)
Key Features
- Exceptional Network Performance: Offers 56 Gbps switching bandwidth and 83.33 Mpps throughput for fast and reliable data transfer.
- Power-Enabled Ports: Features 24 PoE+ RJ45 ports, supplying both data and power to devices like IP phones and wireless access points.
- Scalable Connectivity: Includes 4 SFP uplink ports for high-speed connections to the core network or additional switches.
- Advanced Memory: Equipped with 2GB RAM and 4GB flash for robust performance and support for advanced network features.
- Comprehensive Routing Support: Manages up to 3,000 IPv4 routing entries and 1,500 additional entries for efficient network routing and scalability.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Ports
- 24 x Gigabit Ethernet (PoE+) RJ45 Ports | 4 x Gigabit SFP (uplink)
- Switching Bandwidth
- 56 Gbps
- Maximum Throughput
- 83.33 Mpps
- Memory (RAM)
- 2 GB
- Flash
- 4 GB
Tech Specs
- Stacking Bandwidth
- 80 Gbps
- Total number of MAC addresses
- 16,000
- QoS Scale Entries
- 1,000
- ACL scale entries
- 1,500
- IPv4 routing entries
- 3,000
- IPv6 routing entries
- 1,500
- Layer Services Supported
- Layer 3
PoE-out
- PoE Capability
- 740 Watts
| Products |
|---|
| Choose your plan |
- 128 MB
- MikroTik SwOS
- -20°C to 70°C
- CE, FCC, RoHS
- 8 × Fast Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) | AUTO MDI/MDIX
- 1.6 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 16 x SFP+ 10 GbE | 1 x RJ45 LAN | 1 x Micro-USB
- 480 Gb/s
- 176 Gb/s
- Single-Core: Up to 800 MHz Cortex A9
- 256 MB
- 56 Gb/s
- 32 to 82°F / 0 to 50°C
- 24 x Gigabit Ethernet PoE+ Ports RJ45 | 4 x SFP Gigabit Ethernet
- CE, FCC, IC
- 40 x Gigabit Ethernet WAN RJ45 PoE+ (30 W, 802.3at) | 8 x RJ45 Gigabit Ethernet WAN PoE+ (30 W, 802.3at) | 4 x SFP+ 10 GbE WAN
- 44 Gb/s (Non-Blocking)
- 512 MB
- 128 Gb/s
- 24 x Gigabit Ethernet PoE+ Ports RJ45 (30 W, 802.3at) | 4 x SFP+ 10 GbE WAN
Brand New
MikroTik RB260GSP (CSS106-1G-4P-1S) switch - 5 x Gigabit Ethernet ports, 1 x SFP port
(0.0)
Brand New
TP LINK TL-SF1008P Switch - 8 × Fast Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports), AUTO MDI/MDIX, PoE-out
(0.0)
Brand New
Brand New
HPE Aruba 3810M (JL075A) Switch - 16 x SFP+ 10 GbE, 1 x RJ45 LAN, 1 x Micro-USB
(0.0)
Brand New
HPE Aruba Instant On 1930 (JL685A) Switch - 48 x Gigabit Ethernet Ports RJ45, 4 x SFP+ 10 GbE
(0.0)
Brand New
TP-LINK TL-SG2428P Switch - 24 x Gigabit Ethernet PoE+ Ports RJ45, 4 x SFP Gigabit Ethernet
(0.0)
Brand New

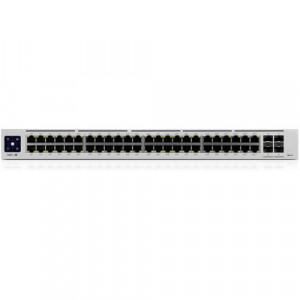

Ubiquiti UniFi Pro (USW-Pro-48-POE) Switch - 40 x Gigabit Ethernet Ports RJ45 WAN PoE+ (30 W, 802.3at), 8 x Gigabit Ethernet RJ45 WAN PoE+ (30 W, 802.3at), 4x SFP+ 10 GbE WAN
(0.0)
Brand New

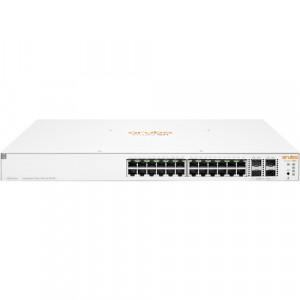

HPE Aruba Instant On 1930 (JL683B) Switch - 24 x Gigabit Ethernet PoE+ Ports RJ45, 4 x SFP+ 10 GbE WAN
