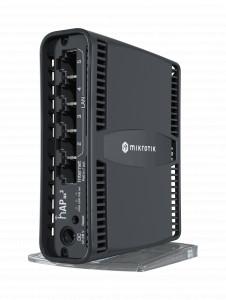

Mikrotik hAP ax² (C52iG-5HaxD2HaxD-TC) Wireless Access Point - Wireless for Home and Office, 5 x Gigabit Ethernet Ports, PoE in and PoE out, Dual-Band support
Key Features
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, FCC, IC, EAC, ROHS
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Wireless 2.4 GHz generation
- Wi-Fi 6
- CPU core count
- 4
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz generation
- Wi-Fi 6
- Operating System
- RouterOS
- Antenna gain dBi for 2.4 GHz
- 4
- Antenna gain dBi for 5 GHz
- 4.5
- CPU
- IPQ-6010
- Ports
- 5 x Gigabit Ethernet | 1 x Gigabit Ethernet with PoE-out | 2 x PoE in
- Ambient temperature
- -40°C to 50°C
- Storage size
- 128 MB
- Size of RAM
- 1 GB
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-28 V
- Max power consumption without attachments
- 12 W
- PoE in input Voltage
- 18-28 V
- Max power consumption without attachments
- 27 W
PoE-out
- PoE-out ports
- Ether 1
- Max out per port output (input 18-30 V)
- 600 mA
- Total output power
- 16.8W
Tech Specs
- RouterOS license
- 4
- Cooling type
- Passive
- Wireless 5 GHz number of chains
- 2
- WiFi speed
- AX1800
- PoE out
- Passive PoE
- Max Transmit power of 2.4 GHz
- 27 dBm
- Wireless 2.4 GHz number of chains
- 2
- Max Transmit power of 5 GHz
- 26 dBm
- PoE in
- Passive PoE
| Products |
|---|
| Choose your plan |
- 16 Gb/s
- 8 x Gigabit Ethernet Ports RJ45
- IEC/EN 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC/EN 62368-1, 2nd. & 3rd. Ed., UL 62368-1, 3rd. Ed., CAN/CSA C22.2 No. 62368-1, 3rd. Ed., IEC/EN 60825- 1:2014 Class 1, EN 55032:2015/ CISPR 32, Class A, FCC CFR 47 Part 15: 2018, Class A, ICES-003, Class A, VCCI-32, Class A, EN 55035, CISPR 35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-3-2, IEC/EN 61000-3-3
- 12 Gbps
- 8.928 Mpps
- 5 x Gigabit RJ45 Ports | 1 x Gigabit SFP Slots
- Ethernet | Bluetooth
- (1) GbE RJ45 port
- 2.4 GHz 23 dBm | 5 GHz 23 dBm
- 3 dBi
- 802.11a/b/g/n/ac/ax
- 802.11a/b/g/n/ac/ax
Brand New
HPE Aruba Instant On 1430 (R8R45A) Switch - 8 x Gigabit Ethernet Ports RJ45
(0.0)
Brand New
Cudy GS1005PTS1 Switch - 12 Gbps Switching Capacity, Throughput up to 8.928 Mpps, 5 x RJ45 Ports, 1 x SFP
(0.0)
Brand New
Brand New
Ubiquiti Unifi U6-Lite-US Access Point - AX1500 Dual-band WiFi 6, 2x2 MIMO
(0.0)
$110 $127
Brand New
Brand New

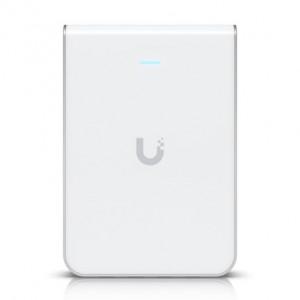

Ubiquiti (UniFi U6+) Wireless Access Point - Wireless for Home and Small Office, 1 x Gigabit Ethernet WAN PoE RJ45, Dual Band Support
