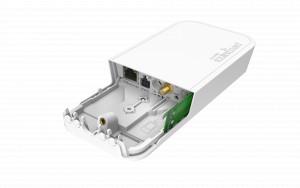

Mikrotik LtAP LR8 LTE kit (RBLtAP-2HnD&R11e-LTE&LR8) Wireless Access - Wireless for Home and Office, LTE, LoRa, 1 x Gigabit Ethernet, 2.4 GHz Band
Key Features
- GPS Connectivity: Equipped with GPS support, enabling l ocation tracking and positioning functionality, ideal for applications requiring geographic information.
- LoRa Technology: Utilizes LoRa (Long Range) technology for low-power, long-range wireless communication, suitable for IoT (Internet of Things) and sensor networks.
- Versatile Deployment: Offers flexibility in deployment, serving as a wireless access point, router, and LoRa gateway, making it suitable for a wide range of applications and environments.
- Robust Connectivity: Provides reliable LTE connectivity, ensuring uninterrupted internet access even in areas with limited wired infrastructure or during network outages.
- Single Gigabit Ethernet Port: Includes one Gigabit Ethernet port for wired connectivity, allowing for high-speed data transfer and connection to devices such as computers or IP cameras.
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, EAC, ROHS
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Antenna gain dBi for 2.4 GHz
- 2.5
- Ambient temperature
- -40°C to 70°C
- Ports
- 1 x Gigabit Ethernet PoE in | USB type A | USB Power Reset | RS232
Powering
- Cooling type
- Passive
- PoE in
- Passive PoE
- Max power consumption without attachments
- 9 W
- Max power consumption
- 24 W
- PoE in input Voltage
- 12-30 V
- DC jack input Voltage
- 12-30 V
- Automotive input Voltage
- 12-27 V
- Number of DC inputs
- 3 (Automotive, PoE-IN, DC jack)
Mobile
- 2G Category
- Class12
- 2G bands
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G bands
- 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category
- R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz)
Tech Specs
- RouterOS license
- 4
- MTBF
- Approximately 200'000 hours at 25C
- Storage type
- FLASH
- Size of RAM
- 128 MB
- CPU Threads count
- 4
- IP
- 54
- Wireless 2.4 GHz chip model
- AR9382
- CPU
- MT7621A
- Wireless 2.4 GHz number of chains
- 2
- Max Transmit power of 2.4 GHz
- 26 dBm
- Storage size
- 16 MB
- CPU core count
- 2
- Operating System
- RouterOS
