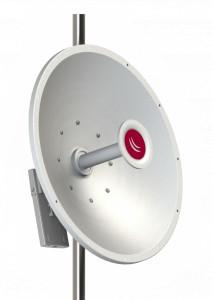

Mikrotik mANT30 MTAD-5G-30D3 - PARABOLIC DISH ANTENNA

$ 198.00

MPN #MTAD-5G-30D3

Questions(2) Answers(2)
Mikrotik

Express Shipping

2-6 Days, via DHL, FedEx, EMS, etc.
Reviews

Reviews

out of 5 stars

Key Features

The mANT30 (MTAD-5G-30D3) is a high-performance antenna designed for outdoor use. With a frequency range of 4.7-5.875 GHz and a front-to-back ratio of >30dB, this antenna provides excellent performance and reliability. It has a vertical and horizontal polarization and an elevation adjustment range of +/- 20 deg. The antenna is certified with CE and ROHS and has an outdoor rating of ETSI EN 300 019-2-4. It is lightweight with a weight of 4.8kg (10.7 lbs) and has a wind survivability of up to 201kph (125mph).

General

Beamwidth
+/-2.5 deg
Certifications
CE, ROHS
Connector
2x RP-SMA Female (outside thread)
Cross Polarization
>40 dB
Diameter x Depth
70 x 45cm (27.5 x 17.8in)
Elevation adjustment range
+/- 20 deg
Frequency Range
4.7-5.875 GHz
Front-to-Back Ratio
>30 dB
Impedance
50 ohms
Outdoor Rating
ETSI EN 300 019-2-4
Packaged size
73x73x20cm (29x29x8in)
Packaged weight
7.5 kg (16.5 lbs)
Polarization
Vertical and Horizontal
Pole Mount Diameter Range
3 to 7cm (1.2 to 2.75in)
Port to Port Isolation
>40dB min
Power Rating
100W
Reflector
Aluminum
Standards
EN 302 326 DN1, DN2, DN3, DN5
VSWR
≤ 1.4 typ, ≤ 1.8 max
Weight
4.8kg (10.7 lbs)
Wind Load (125 mph)
181.4kg (400 lbs) at 125 mph, 50 kg at 40 m/s, 28 kg at 30 m/s
Wind Survivability
201kph (125mph)
Ambient temperature
-50°C to 80°C (-49°F to 158°F)
