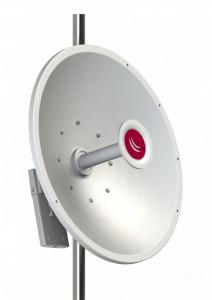

Mikrotik mANT30 PA MTAD-5G-30D3-PA - PARABOLIC DISH ANTENNA
MPN #MTAD-5G-30D3-PA
Express Shipping
Reviews
Reviews
out of 5 stars
Key Features
The mANT30 PA (Product code: MTAD-5G-30D3-PA) is a high-performance directional antenna with a frequency range of 4.7-5.875 GHz. It has a beamwidth of +/-2.5 degrees and a front-to-back ratio of >30 dB. The antenna is made of durable aluminum and has an outdoor rating of ETSI EN 300 019-2-4, making it suitable for outdoor installations. It has a VSWR of ≤1.4 typ, ≤1.8 max, and a power rating of 100W. Other features include 2x RP-SMA Female connectors, vertical and horizontal polarization, and wind survivability of up to 201kph (125mph).
Specifications
Overview
Frequently Compared
Q&A
Warranty
wholesale buying guide
General
- Certifications
- CE, ROHS
- Beamwidth
- +/-2.5 deg
- Connector
- 2x RP-SMA Female (outside thread)
- Cross Polarization
- >40 dB
- Diameter x Depth
- 70 x 45cm (27.5 x 17.8in)
- Elevation adjustment range
- +/- 15 deg
- Frequency Range
- 4.7-5.875 GHz
- Front-to-Back Ratio
- >30 dB
- Impedance
- 50 ohms
- Outdoor Rating
- ETSI EN 300 019-2-4
- Packaged size
- 73x73x20cm (29x29x8in)
- Packaged weight
- 8.4 kg (18,5)
- Polarization
- Vertical and Horizontal
- Pole Mount Diameter Range
- 3 to 10cm (1.2 to 3.9in)
- Port to Port Isolation
- >40dB min
- Power Rating
- 100W
- Reflector
- Aluminum
- Standards
- EN 302 326 DN1, DN2, DN3, DN5
- VSWR
- ≤ 1.4 typ, ≤ 1.8 max
- Weight
- 5.7kg (12.6 lbs)
- Wind Load (125 mph)
- 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s
- Wind Survivability
- 201kph (125mph)
- Ambient temperature
- -50°C to 80°C (-49°F to 158°F)
