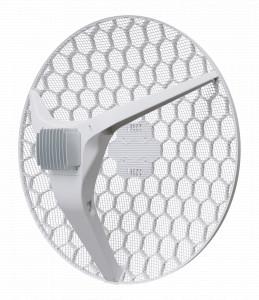

Ubiquiti UISP LTU Extreme-Range ( (LTU-XR) Antenna - 1 x Gigabit Ethernet Port, 5 GHz 29 dBi Point-to-Point, CPE point-to-multi-point
Key Features
- 5 GHz Frequency Band: Supports high-performance long-range communication for point-to-point and point-to-multi-point setups.
- 29 dBi High-Gain Antenna: Maximizes signal strength and transmission range, providing reliable connectivity across vast distances.
- Gigabit Ethernet Port: Ensures fast data transfer rates for high-speed network operations and bandwidth-intensive applications.
- Outdoor Durability: Built for harsh outdoor environments, offering dependable performance in extreme weather conditions.
- Seamless Integration with UISP: Compatible with Ubiquiti’s UISP platform for easy network management and enhanced scalability in wireless deployments.
Specifications
Q&A
Warranty
wholesale buying guide
General
- Certifications
- FCC, IC, CE
- Antenna gain dBi for 5 GHz
- 29 dBi
- Tested ambient temperature
- -40 to 55° C (-40 to 131° F)
- Ports
- 1 x Gigabit Ethernet Port (RJ45)
Tech Specs
- Mounting
- Integrated pole mount (included) | Pole compatibility 35 to 60 mm (Ø1.4 to 2.4")
- Button
- Factory reset
- Maximum Throughput
- 900+ Mbps
- Weight
- 3.25kg
Powering
- Max power consumption
- 9 Watts
- Max Transmit power of 5 GHz
- 25 dBm
- Power Supply
- 24V, 0.5A gigabit PoE adapter (Included)
| Products |
|---|
| Choose your plan |
- 8GB
- Layer 2, Layer 3
- 16GB
- 10 Gbps
- Yes
- Desktop | Wall Mountable | Rack-mountable
- 104 Gb/s
- ARM Cortex A9 (Dual-Core Up to 1016 MHz)
- 1GB DDR3
- 912 Gbps
- 0°C to 50°C (32°F to 122°F)
- 1GB
- 512 MB
- -40 to 60° C (-40 to 140° F)
- ARM Cortex-A53 (Quad-core at 1.4 GHz)
- -40 to 80° C (-40 to 176° F)
- CE, FCC, IC
- 19 dBi
- 4.9 GHz: 30 dBi 5 - 5.8 GHz: 34 dBi
- 200 km/h (125 mph)
Brand New

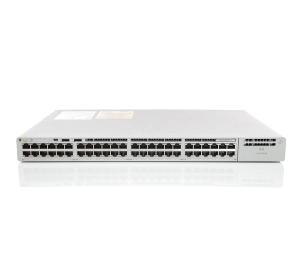

CISCO Catalyst C9300-48T-A Switch - 208 Gbps Switching Capacity, Throughput up to 154.76 Mpps, 24 x RJ45
